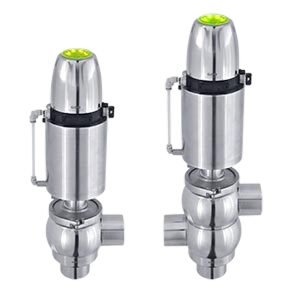

Single Seat Rising Stem Valves

Kieselmann single-seat valves are used to control flow for on/off or flow diverting use. The valves have application where:

A more hygienic process valve is required, due to ease of cleaning
A modular body configuration to match the flow-path is required
Reversable actuator for either normally open (NO) or normally (NC) is required
Manual or pneumatic operation is required
Various valve position indication options are required

Looking to Purchase or Need Spare Parts? Request a Quote Today!

Request a Quote

Single Seat Valve Types

Part Number	Description	Picture	Data Sheet	.STP

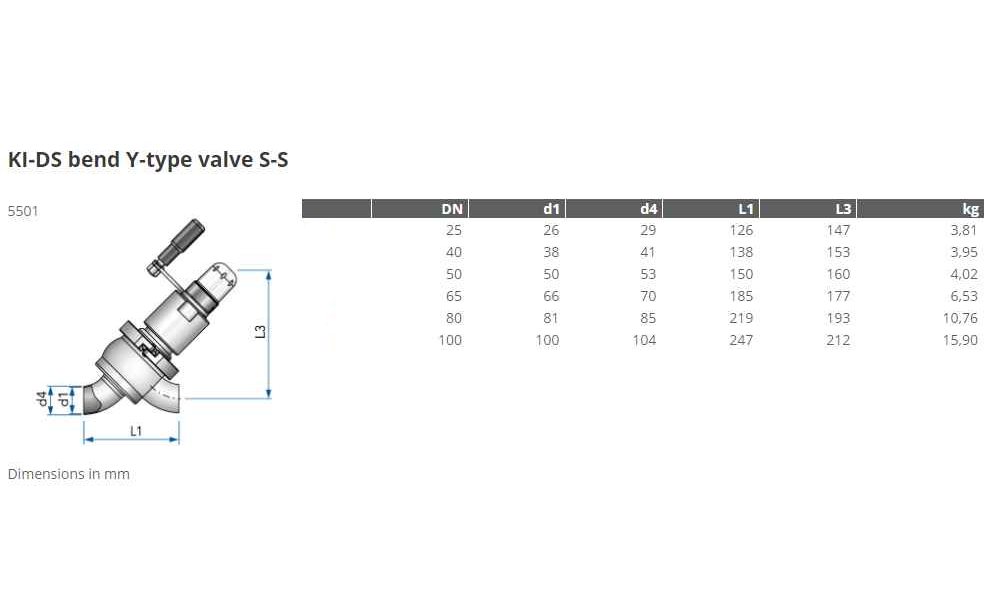

5501	Inclined seat valve, manual, metric, 316L, weld ends EPDM, HNBR - MUST SPECIFY		View Data Sheet

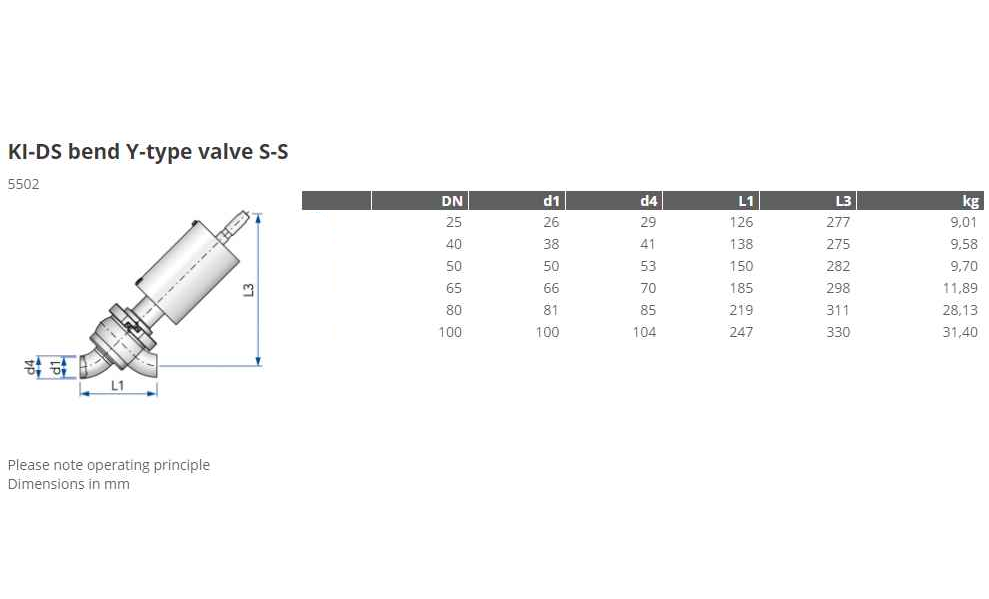

5502	Inclined seat valve, pneumatic air-to-open/ spring close, metric, 316L, weld ends EPDM, HNBR - MUST SPECIFY		View Data Sheet

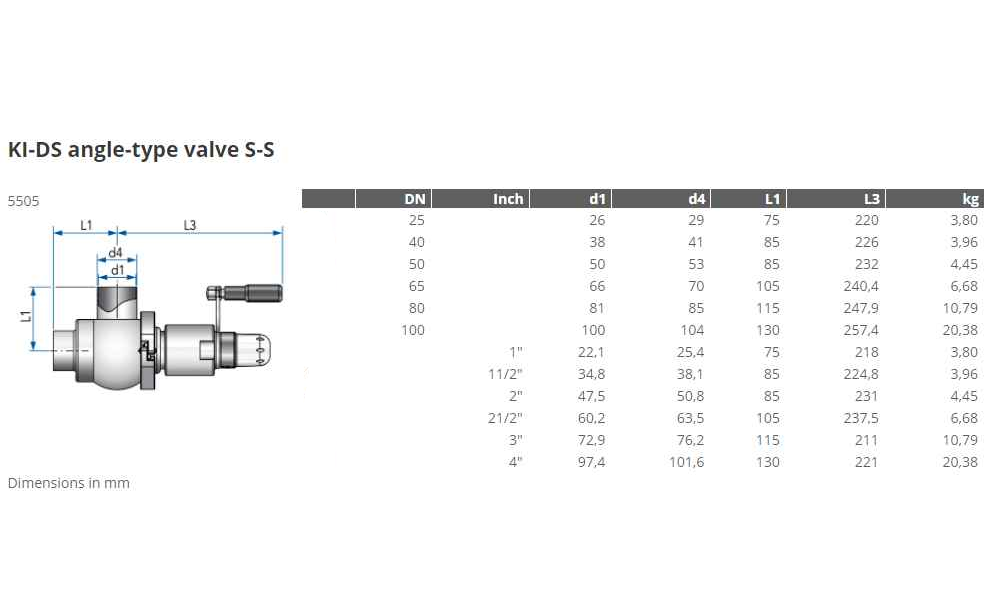

5505	Right angle seat valve, metric & inch, manual, 316L, weld ends (S-S)		View Data Sheet

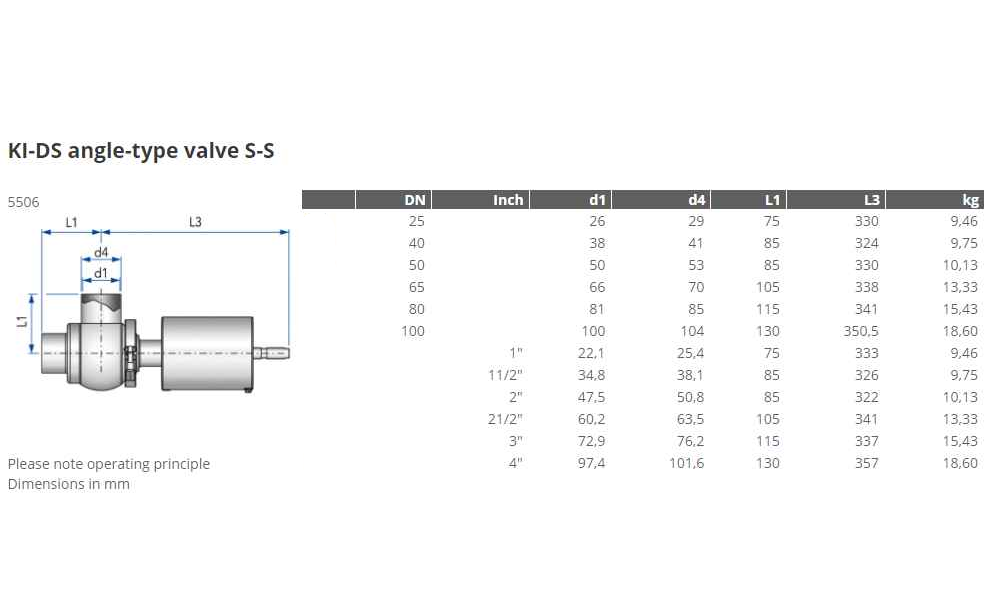

5506	Right angle seat valve, metric & inch, pneumatic air-to-open/spring close, 316L, weld ends (S-S)		View Data Sheet

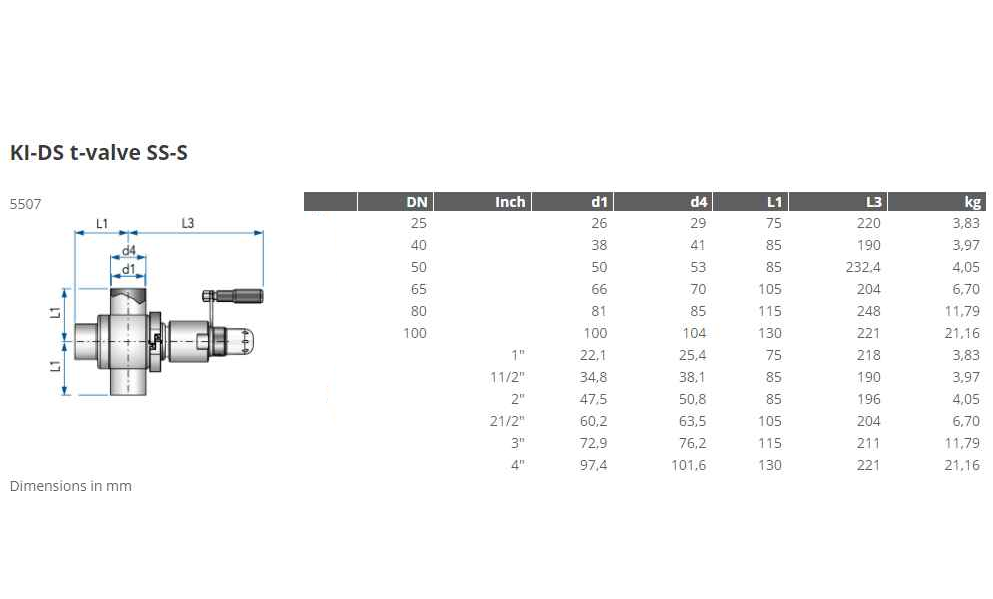

5507	Seat valve, 3 port "T" arrangement, metric & inch, manual, 316L, EPDM or HNBR		View Data Sheet

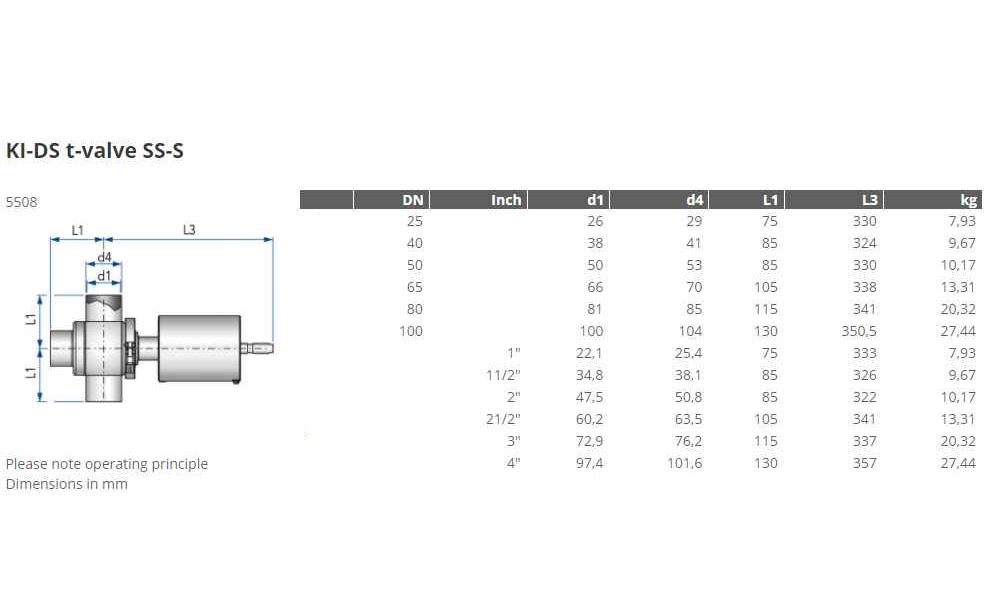

5508	Seat valve, 3 port "T" arrangement, metric & inch, pneumatic air-to-open/spring close, 316L, EPDM or HNBR		View Data Sheet

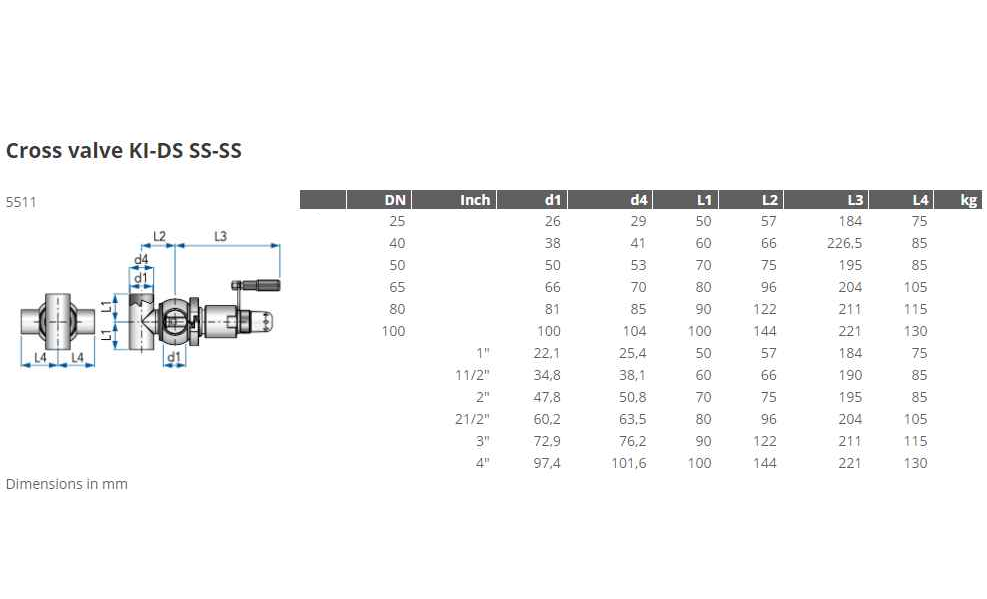

5511	Cross body, four port single seat valve, metric & inch, manual, 316L, EPDM or HNBR		View Data Sheet

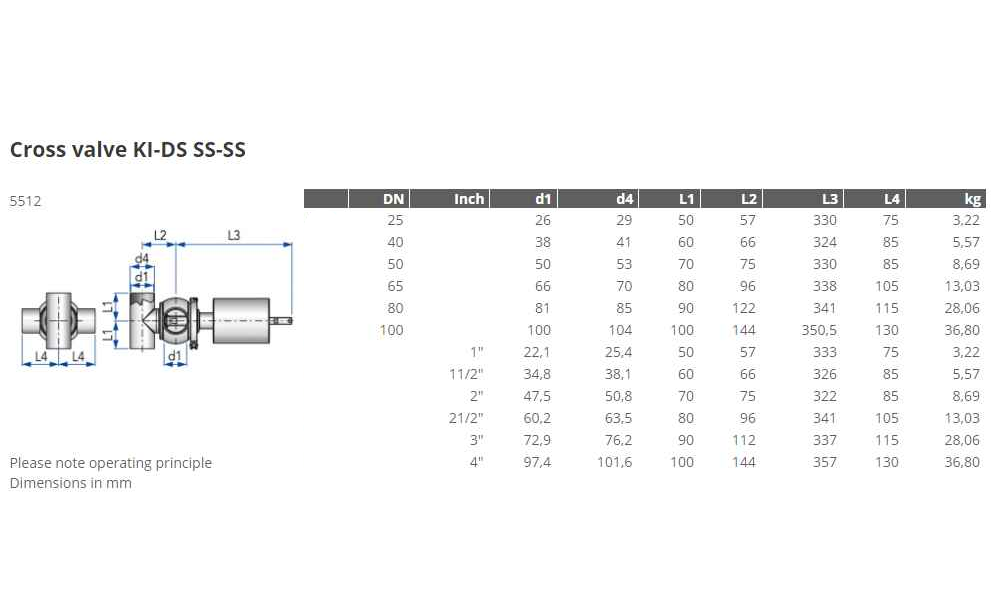

5512	Cross body, four port single seat valve, metric & inch, pneumati, air-to-open/spring close, 316L, weld end x weld end (S-S), EPDM or HNBR		View Data Sheet

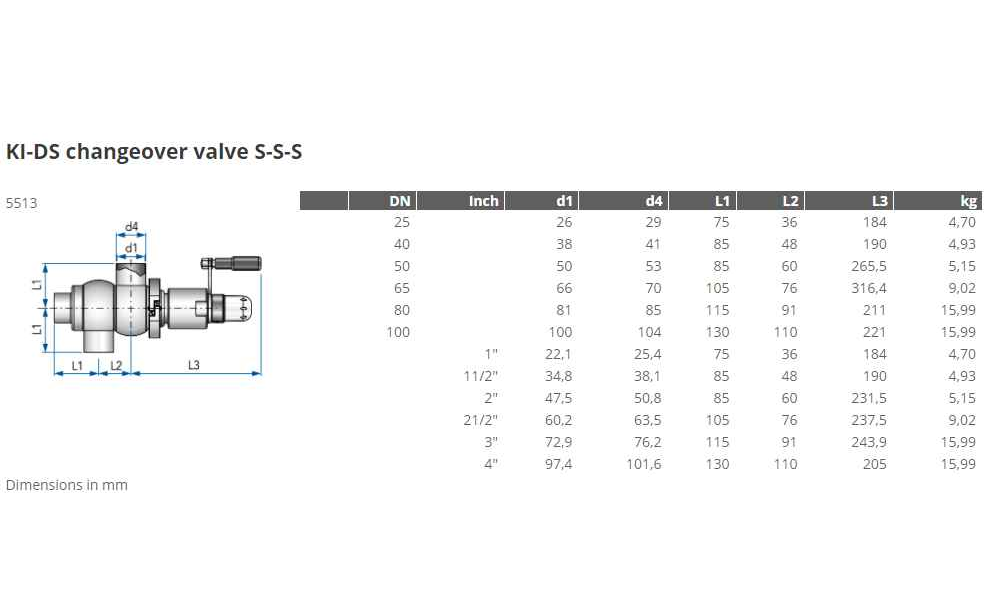

5513	Single seat 3-port changeover valve, metric & inch, manual, 316L, weld ends (S-S) EPDM or HNBR		View Data Sheet

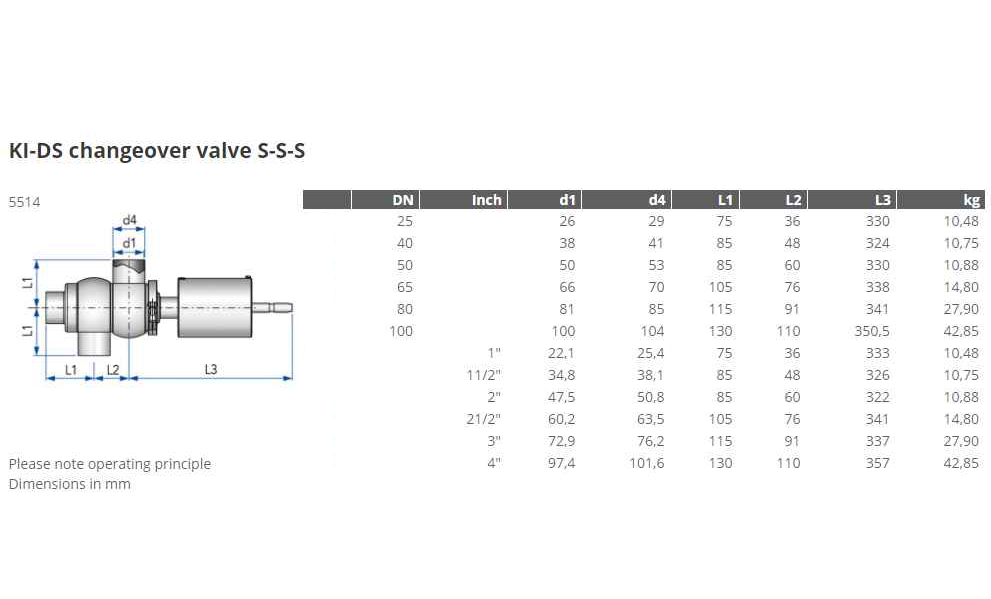

5514	Single seat 3-port changeover valve, metric & inch, pneumatic air-to-open/spring close, 316L, weld ends (S-S), EPDM or HNBR		View Data Sheet

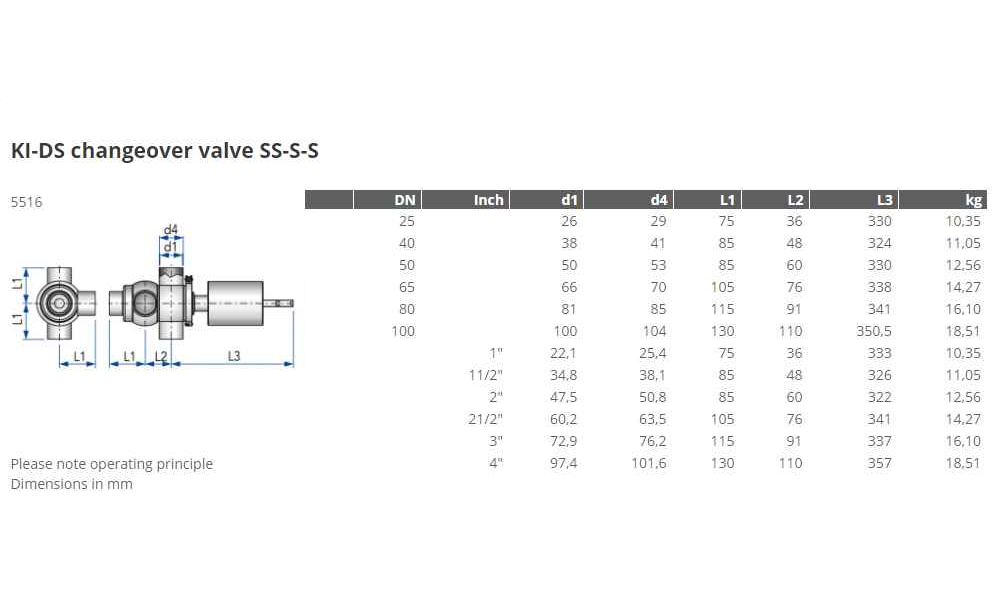

5516	Single seat 4-port changeover valve, metric & inch, pneumatic air-to-open/spring close, 316L, weld ends (S-S), EPDM or HNBR		View Data Sheet

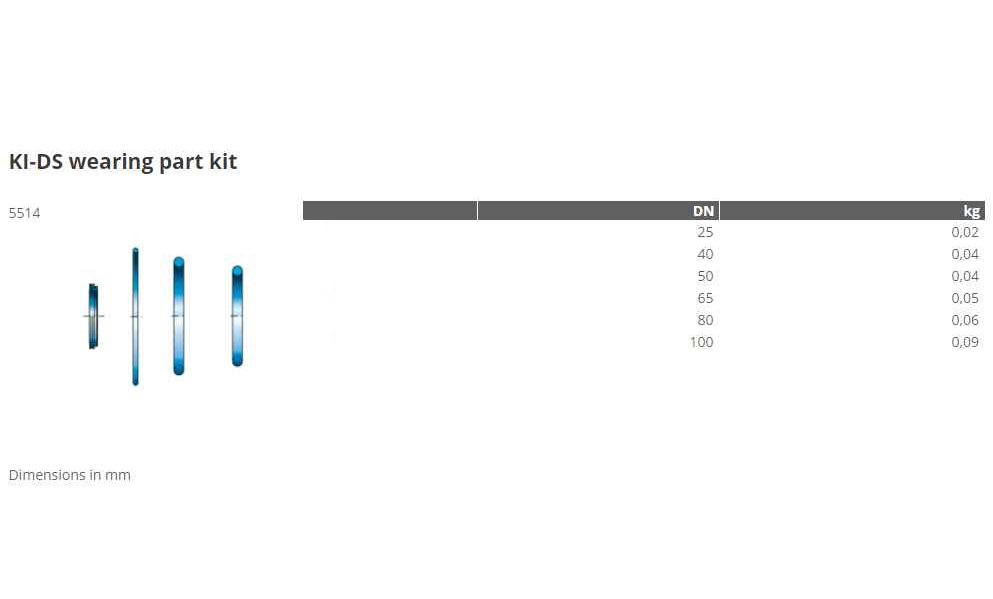

5514-(990)	Seal kit for single-set changeover valve, EPDM or HNBR, please specify		View Data Sheet

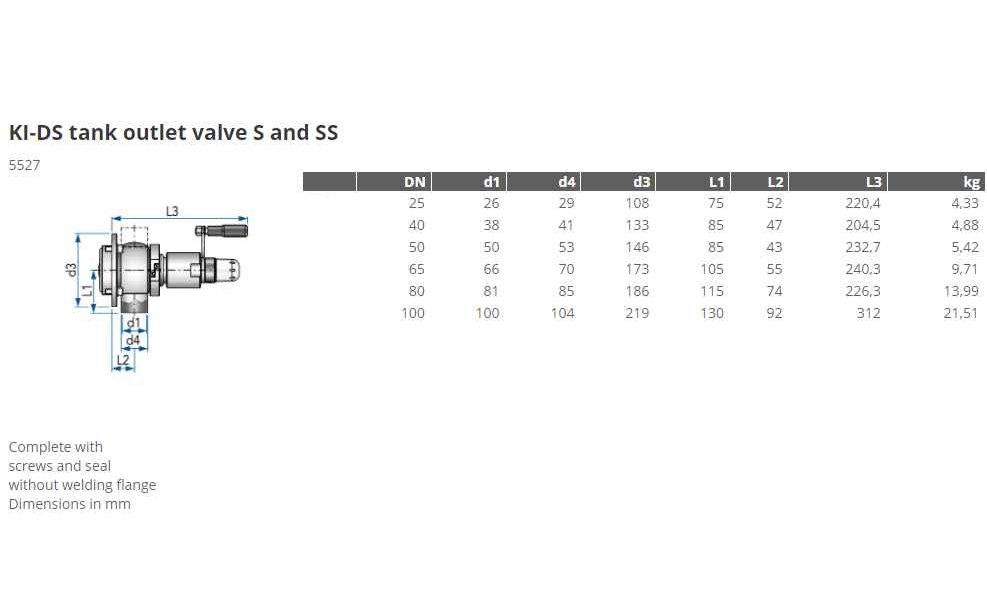

5527	Tank outlet valve, single seat, 1-port, manual, 316L, blockflange x weld end (BF-S)		View Data Sheet

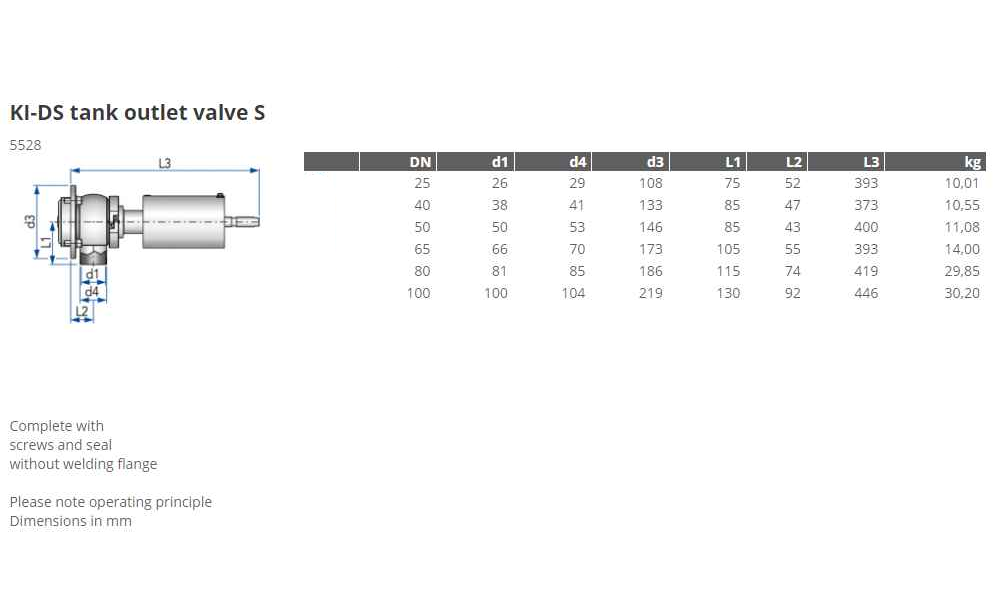

5528	Tank outlet valve, single seat, 1-port or 2-port, air-to-open/spring close, 316L, blockflange x weld end (BF-S)		View Data Sheet
5528-(990)	Sel set, tank outlet single-seat valve, EPDM or HNBR
5727	Blockflange weld flange for tank outlet single-seat valves, 316L		View Data Sheet
5631	Control top for single seat valves - specify number of solenoids and sensors		View Data Sheet
511X	Flow control valve, right angle, inch or metric manual, weld-ends (S-S), EPDM or HNBR seals, specify application details
511X	Flow control valve, right angle, electro-pneumatic positioner, piston actuator, weld-ends (S-S), EPDM or HNBR seals, specify application details
511X	Flow control valve, right angle, electro-pneumatic positioner, diaphragm actuator, weld-ends (S-S), EPDM or HNBR seals, specify application details
5119	Flow control valve, seal set, right angle valve, inch or metric, EPDM, HNBR, FKM, Metallic/EPDM
5061	Flow throttle valve, metric, manual, 316L, weld ends (S-S)		View Data Sheet
5064	Throttle valve, seal set, NBR or EPDM		View Data Sheet

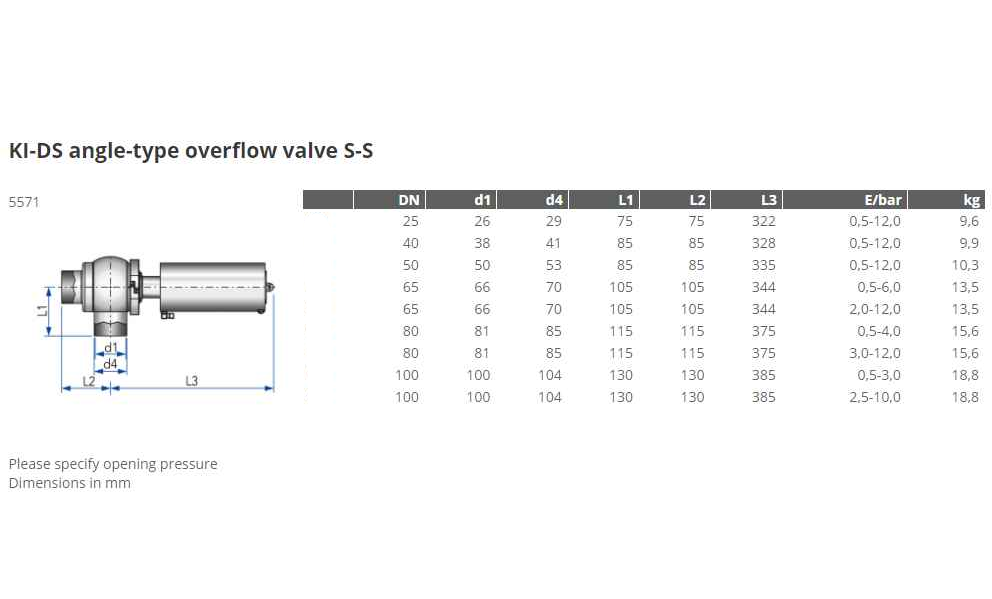

5571	Pressure relief valve, angle, metric or inch, 316L, weld x weld ends (S-S), nut x thrread (KM/G),thread x thread (G-G), specify pressure range		View Data Sheet
5571-(090)	PRV seal set, EPDM, HNBR, FKM		View Data Sheet
5091	Check valve, disk type non-return valve, 316L, thread, nut union internal, thread x weld ends (G-S) EPDM		View Data Sheet

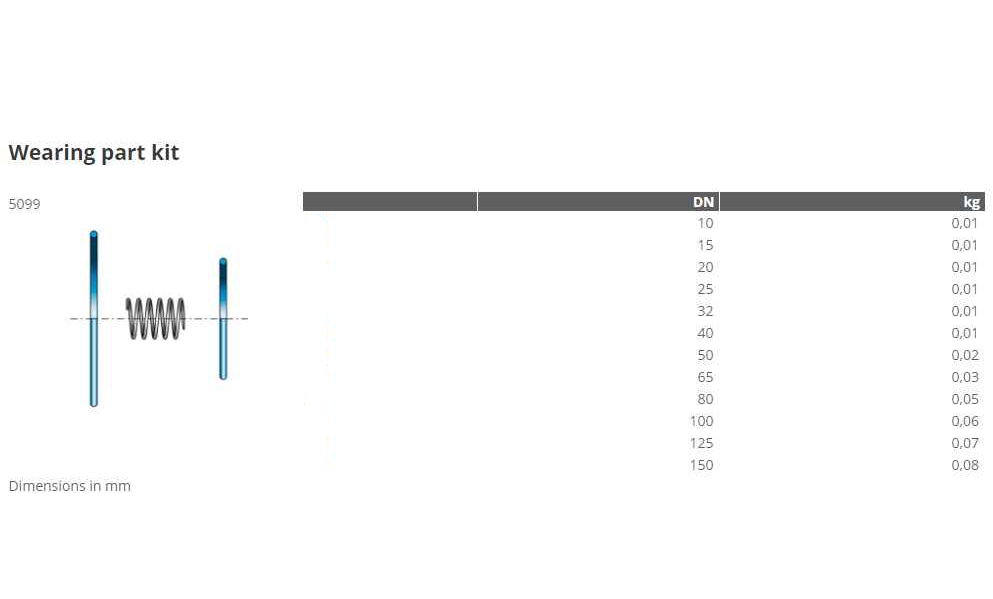

5099	Check valve seal kit EPDM for 5091		View Data Sheet
5093	Check valve, disk type non-return valve, 316L, weld x weld ends (S-S), flanged interal, EPDM		View Data Sheet

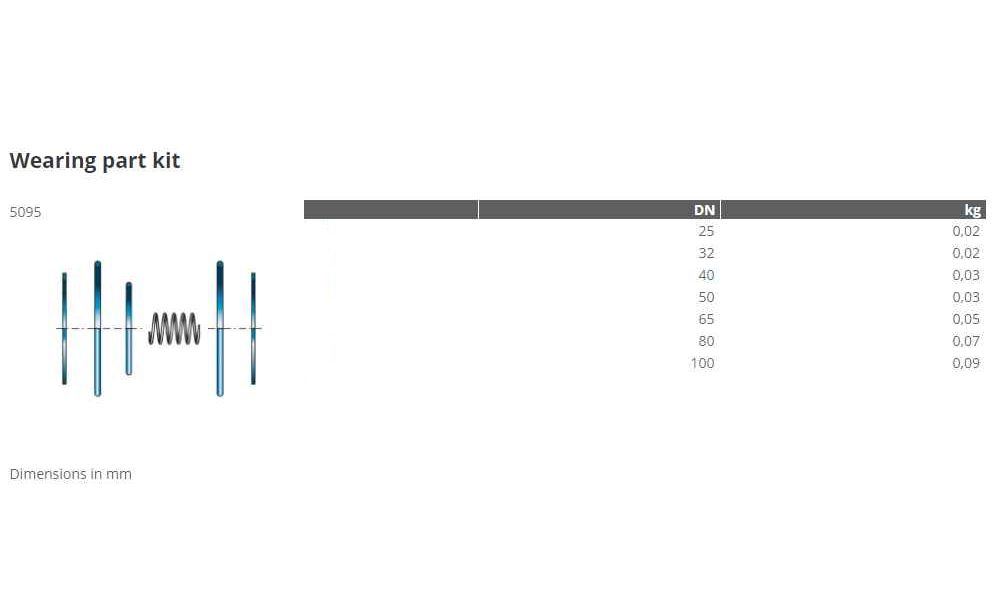

5095	Check valve seal kit EPDM for 5093		View Data Sheet
8615	Electropneumatic positioner, rising stem		View Data Sheet
5642	Double-seat valve, single port top, single port bottom, pneumatic, 316L, k-flex seals, weld x weld ends		View Data Sheet
5672			View Data Sheet
5643	Double-seat valve, single port top, two port bottom, pneumatic, 316L, k-flex seals, weld x weld x weld ends		View Data Sheet
5673			View Data Sheet
5641	Double-seat valve, tow port top, single port bottom, pneumatic, 316L, k-flex seals, weld x weld x weld ends		View Data Sheet
5671			View Data Sheet
5644	Double-seat valve, tow port top, two port bottom, pneumatic, 316L, k-flex seals, weld x weld x weld x weld ends		View Data Sheet
5674			View Data Sheet
5640	Double seat valve seal set - k flex		View Data Sheet
5625	Double-seat valve, 3-port changeover, single port top, single port middle, single port bottom, pneumatic, 316L, k-flex seals, weld x weld x weld ends		View Data Sheet
5625-SEAL	Double seat changeover valve seal set EPDM or HNBR
5629	Double seat tank outlet valve, single or double outlet, pneumatic, blockflange x weld ends, EPDM or HNBR		View Data Sheet

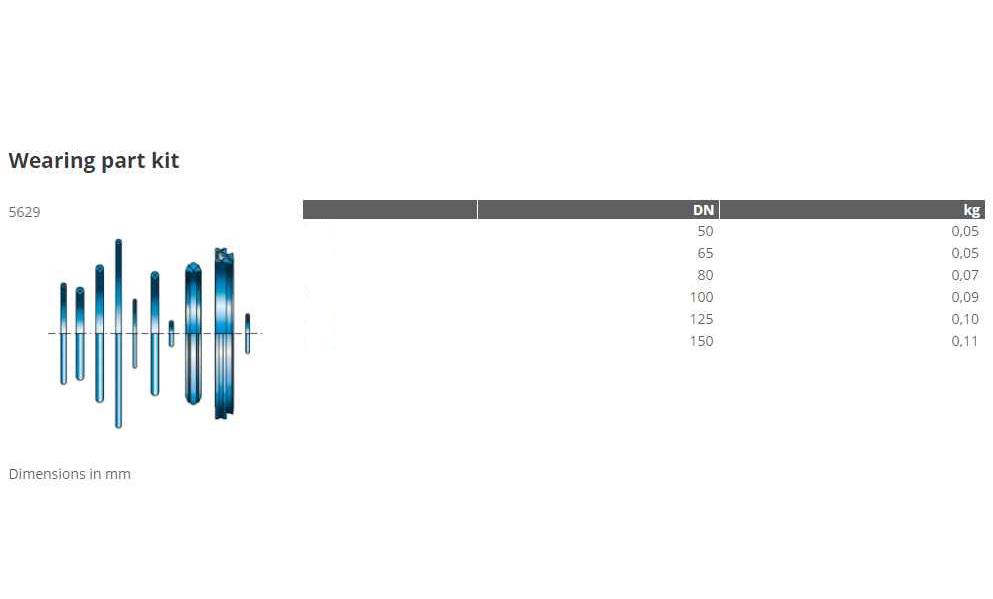

5629-SEAL	Tank outlet double seat seal set EPDM or HNBR		View Data Sheet
5670	Tool kit, double seat valves		View Data Sheet
5631	Control Top for double seat valve, specify requirements		View Data Sheet
6131
6132
6133
6135
6357	Safety relief valve for liquids, metric, 316L, no override, pneumatic override, manual override, nut x thread ends (K/M-G), EPDM or HNBR		View Data Sheet
6147	Gas safety valve, metric, 304L, vairous pressure ranges, nut end K/M
6138
6139
6160	Anti-vacuum valve,304L, spring loaded		View Data Sheet
6161	Anti-vacuum valve, 304L weight loaded
6170	Tank top cleaning/deaeration pressure arm, metric, 304L, manual spring loaded		View Data Sheet
TDAM	Tank top unit -vacuum, overpressure, deaeration, cleaning unit, single tank connection, metric & inch
6210
6211
6212
6241	Pressure relief unit, complete, 304L
6246	Bunging valve, with plastic cylinder disinfectant chamber, 304L - metric, inch various process connection		View Data Sheet
6268	Angle Bunging valve, metric & inch, various connections, 304L		View Data Sheet
