Inline Access Housings & Sight Glasses

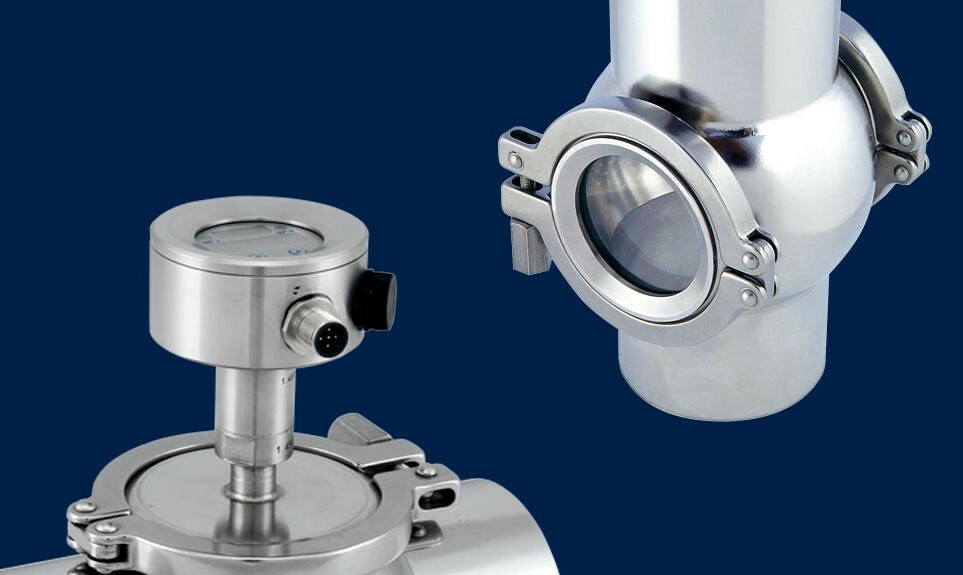

In-line Access Housings offer a dead-space-free hygienic method of installing sight-glasses and process sensors for a cleanable worry-free process component. In-line access units can incorporate:
- Sightglasses
- Lighted sightglasses
- Sanitary process sensors
- Sample valves
- Blanked bodies for future process penetrations
Standard sightglasses offered as:
- Glass cylinder style
- Flat-glass inserts
- Multiple viewing glass materials
Looking to Purchase or Need Spare Parts? Request a Quote Today!
Request a Quote
Inline Access Housing & Sightglass Types
| Part Number | Description | Picture | Data Sheet | .STP |

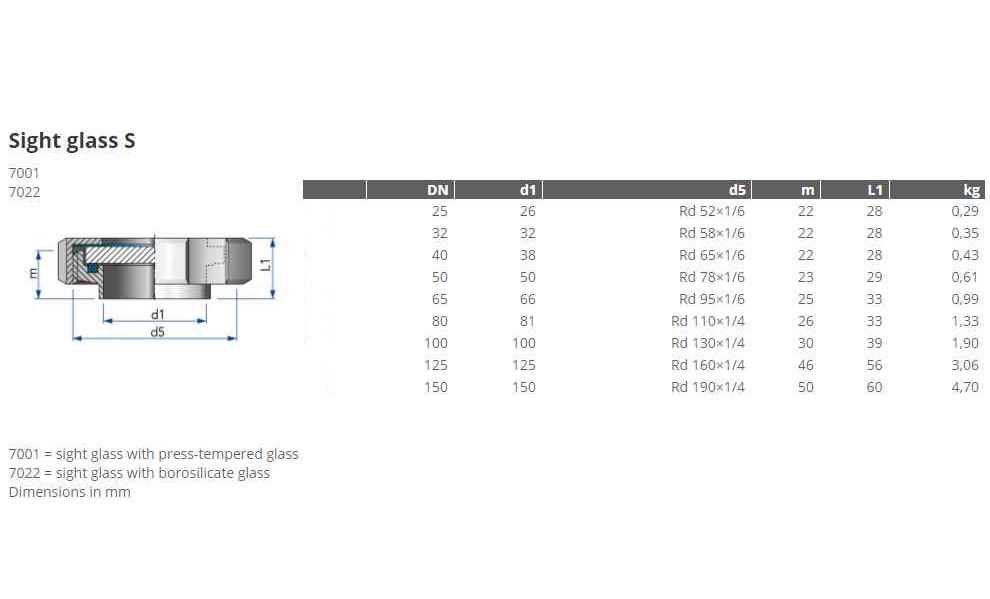

| 7001-7022 | sightglass,304 ss ,various gasket options,weld end, tempered glass or borosilicate glass | View Data Sheet | ||
| 7001 | In-line access unit for mounting sightglasses and sensors, incl. (2) clamps, gaskets, hardware | View Data Sheet | ||

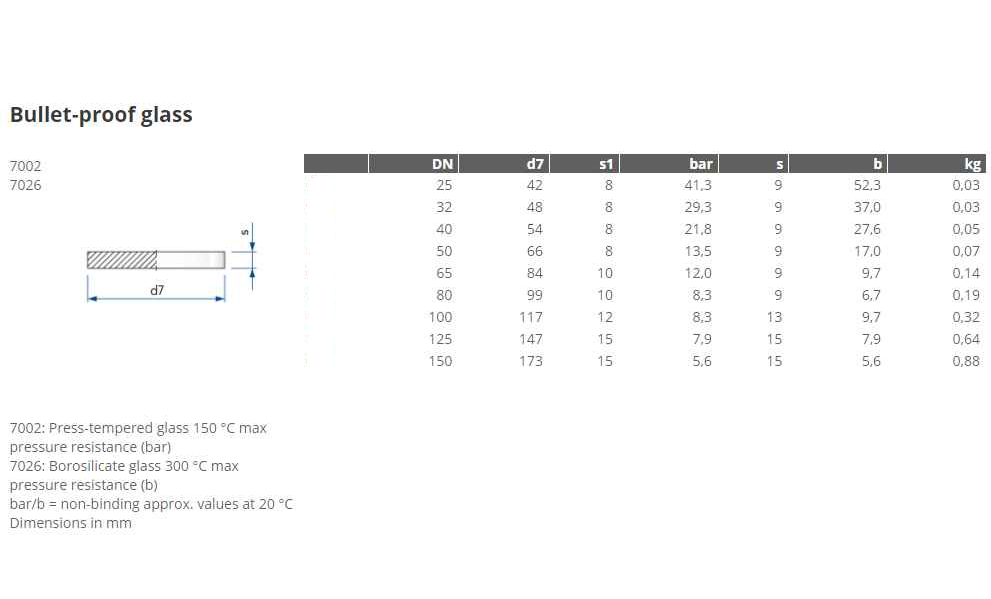

| 7002 7026 | Sightglass replacement lenses, tempered glass and borosilicate glass | View Data Sheet | ||

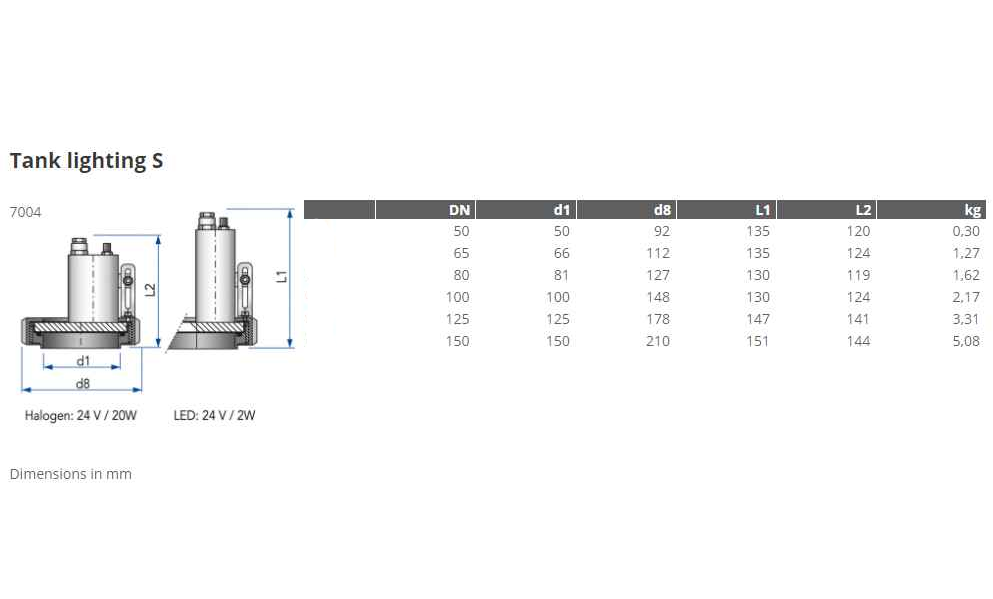

| 7004 | Tank lighting, halogen or led, mounted to din nut, see 7001-7002,304l | View Data Sheet | ||

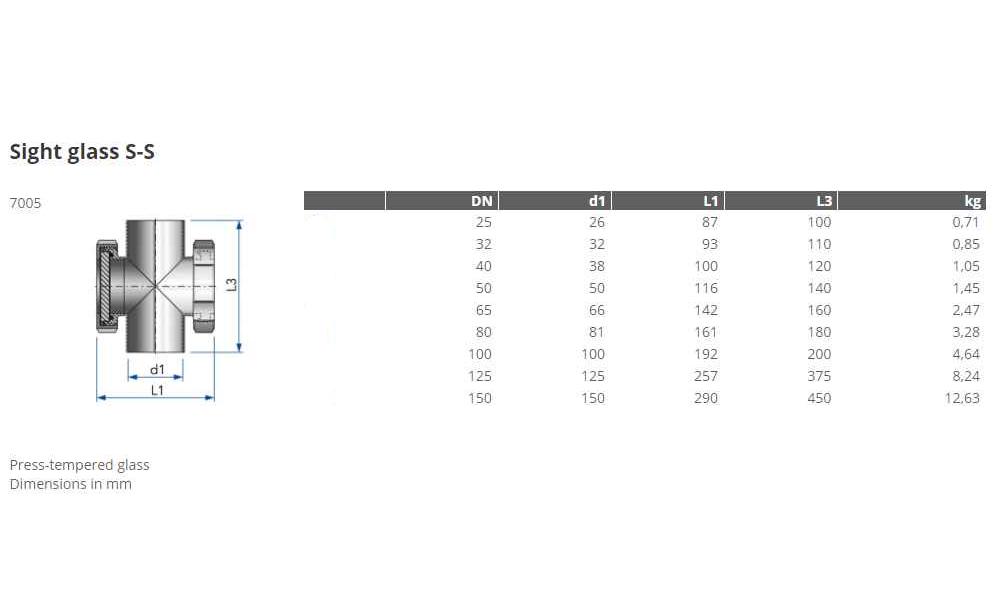

| 7005 | Sightglass, bullseye in-line, 304l, various gasket options, tempered glass | View Data Sheet | ||

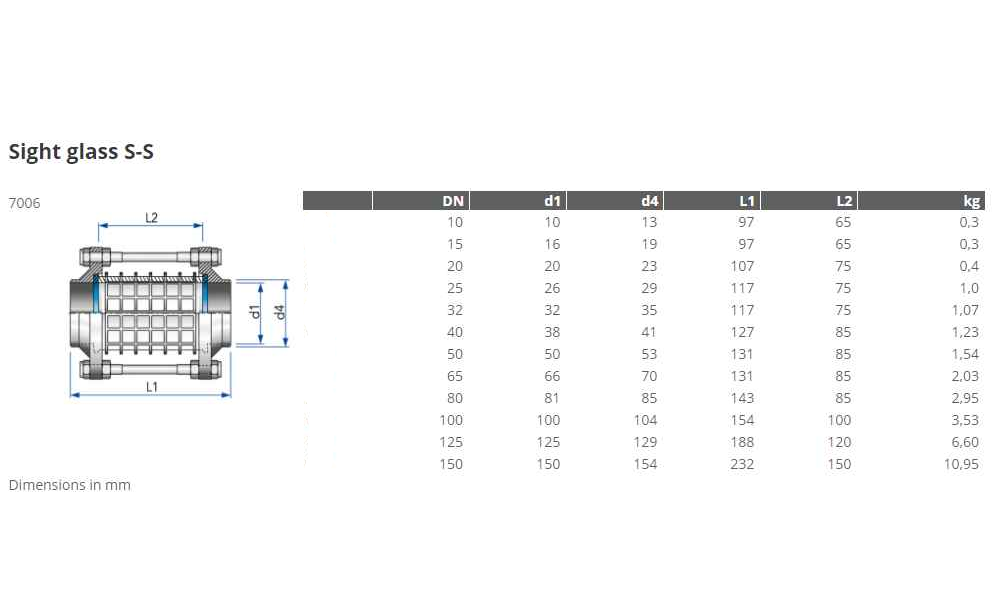

| 7006 | Sight glass, in-line, cylindrical borosilicate glass, stainless shatter guard, 304l, weld ends, various gasket options | View Data Sheet | ||

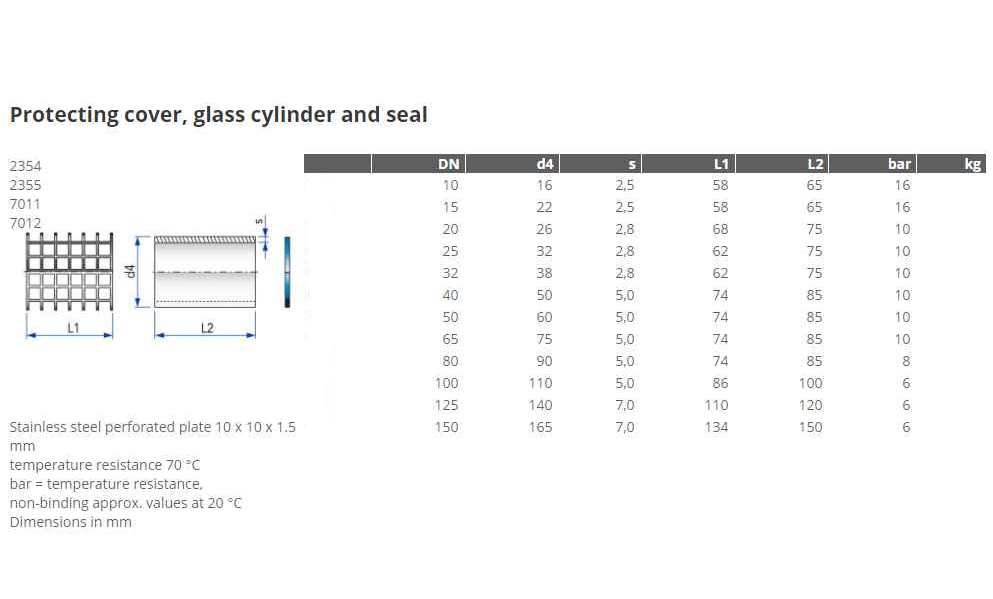

| 7011_7012 | Replacement borosilicate cyliner glass, stainess protective cover, 304l | View Data Sheet | ||

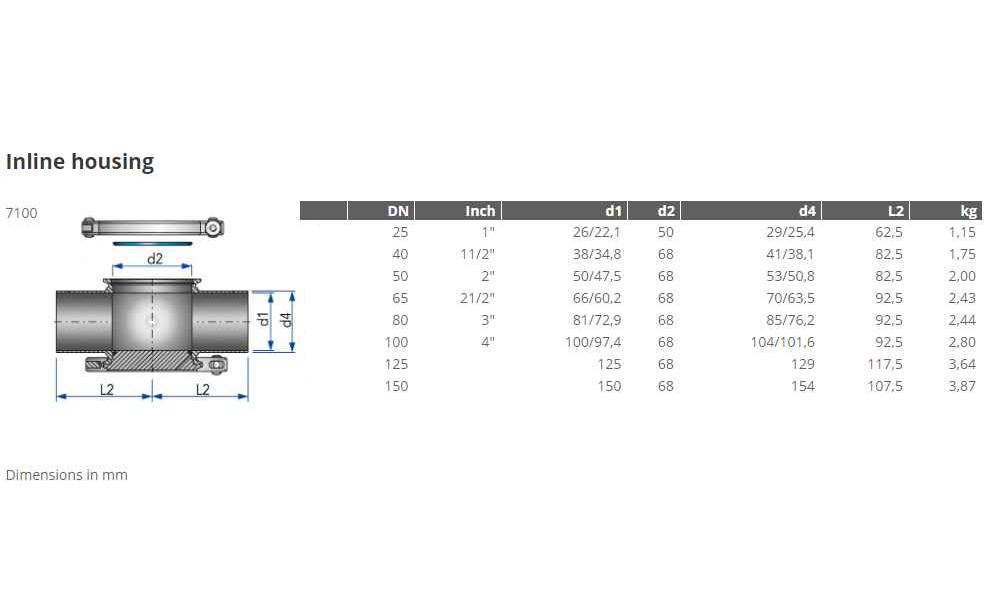

| 7100-2 | In-line access unit, metric or inch, (1) blind, (2) clamps & gaskets, hardware, 304l, EPDM | View Data Sheet | ||

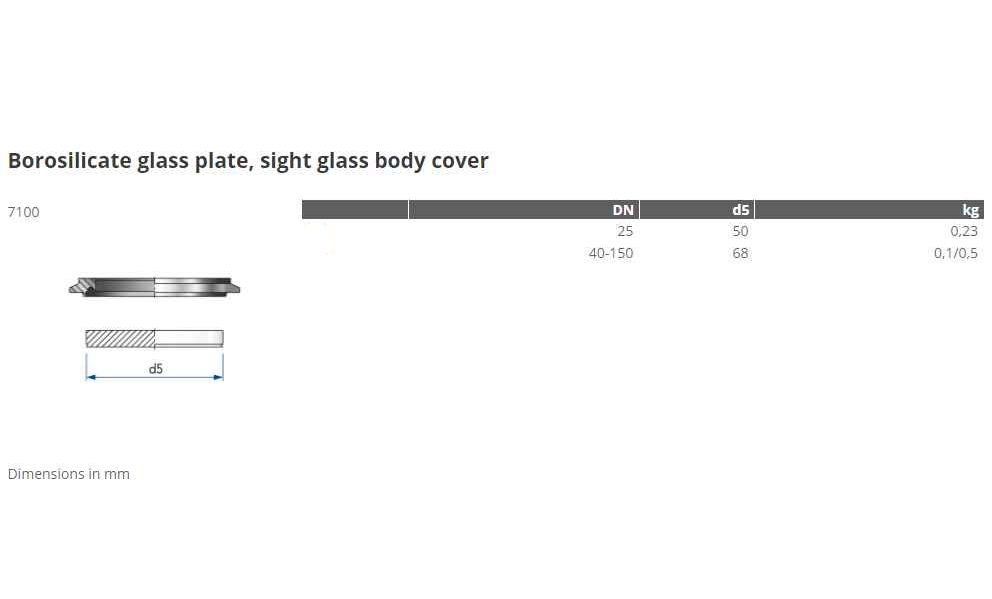

| 7100 | In-line access unit-sightglass kit conversion, includes borosilicate glass lens and retaining ring, 304l-1 | View Data Sheet | ||

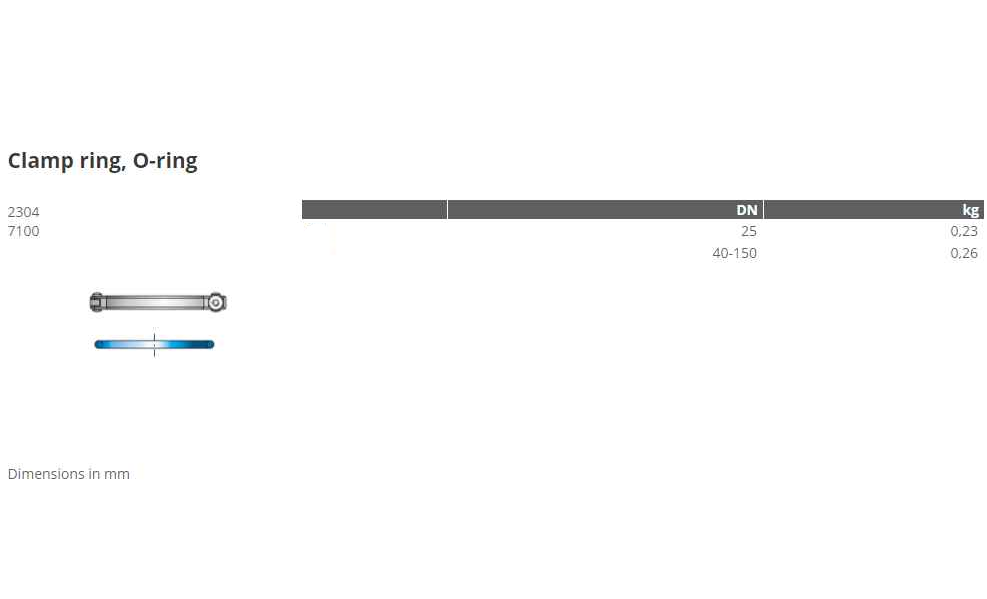

| 7100 | Inline access unit, clamp and gasket with hardware, EPDM-1 | View Data Sheet | ||

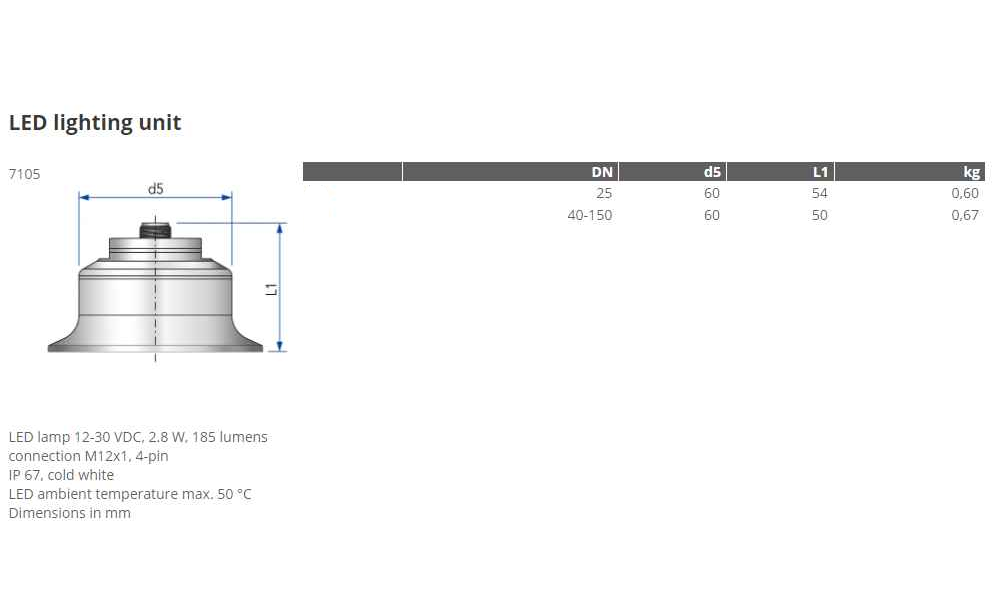

| 7105 | Inline access unit, clamp and gasket with hardware, EPDM-1 in-line access unit, led lamp assembly | View Data Sheet |
Data Sheets & Brochures
