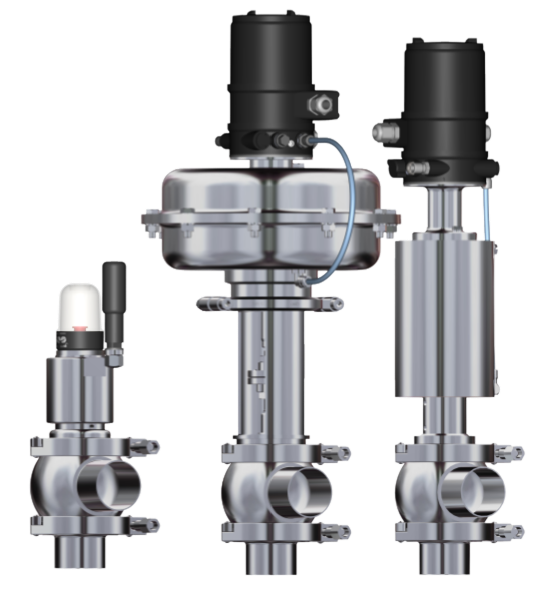

Control Valves
Kieselmann control valves for liquids and gases regulate flow and pressure. Control with:
- Butterfly valves with I/P positioners for course control
- Single seat rising stem control valves with interchangeable seats and cones for finer control
- Linear or equal percentage flow characteristics
- Piston or diaphragm actuators
Looking to Purchase or Need Spare Parts? Request a Quote Today!
Request a Quote
Control Valve Types
| Part Number | Description | Picture | Data Sheet | .STP |
| 511X | Flow control valve, right angle, inch or metric manual, weld-ends (S-S), EPDM or HNBR seals, specify application details | |||
| 511X | Flow control valve, right angle, electro-pneumatic positioner, piston actuator, weld-ends (S-S), EPDM or HNBR seals, specify application details | |||
| 511X | Flow control valve, right angle, electro-pnematic positioner, diaphragm actuator, weld-ends (S-S), EPDM or HNBR seals, specify application details | |||
| 5119 | Flow control valve, seal set, right angle valve, inch or metric, EPDM, HNBR, FKM, Metallic/EPDM | |||

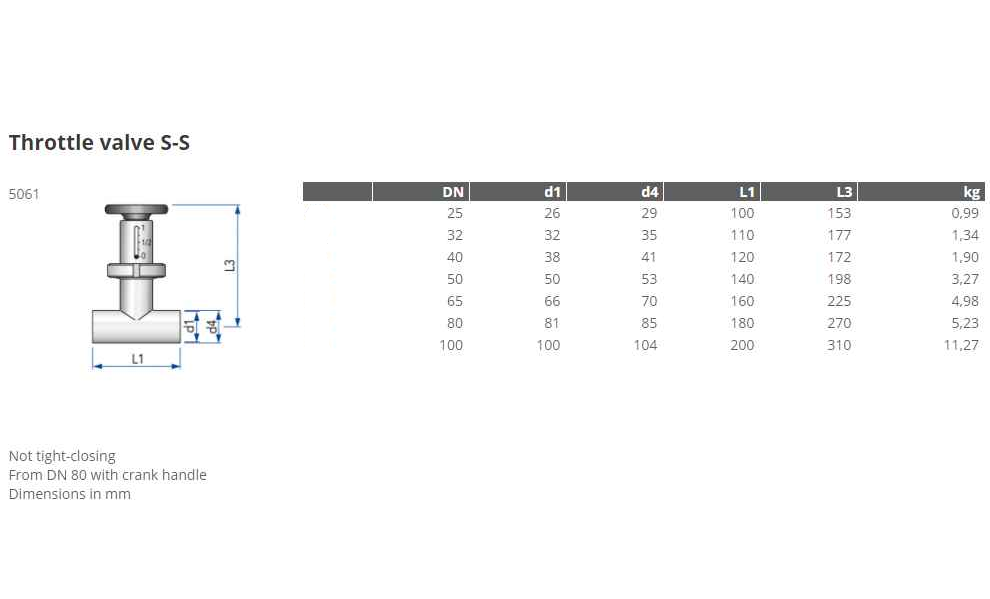

| 5061 | Flow throttle valve, metric, manual, 316L, weld ends (S-S) | View Data Sheet | ||

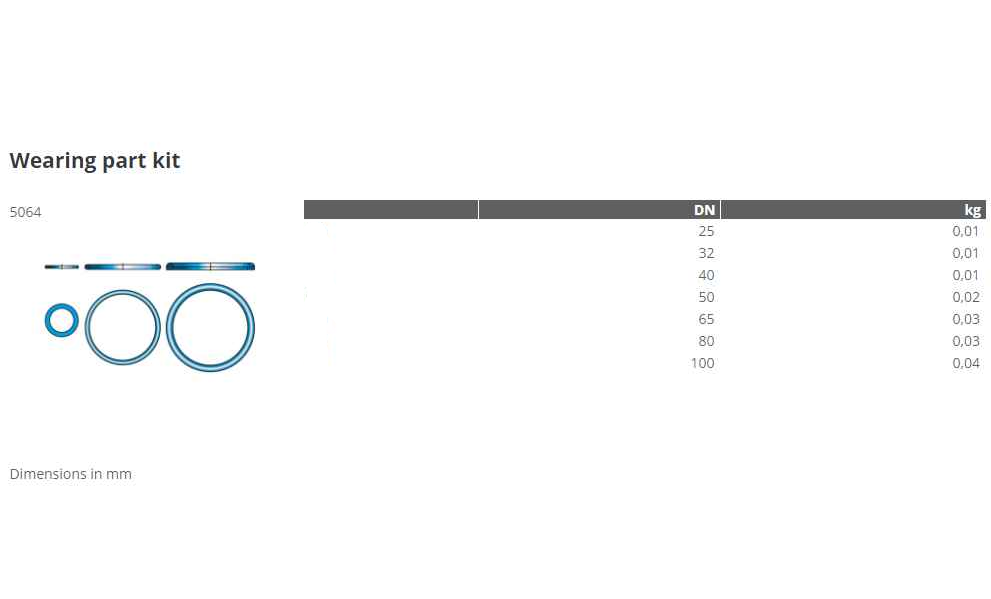

| 5064 | Throttle valve, seal set, NBR or EPDM | View Data Sheet | ||

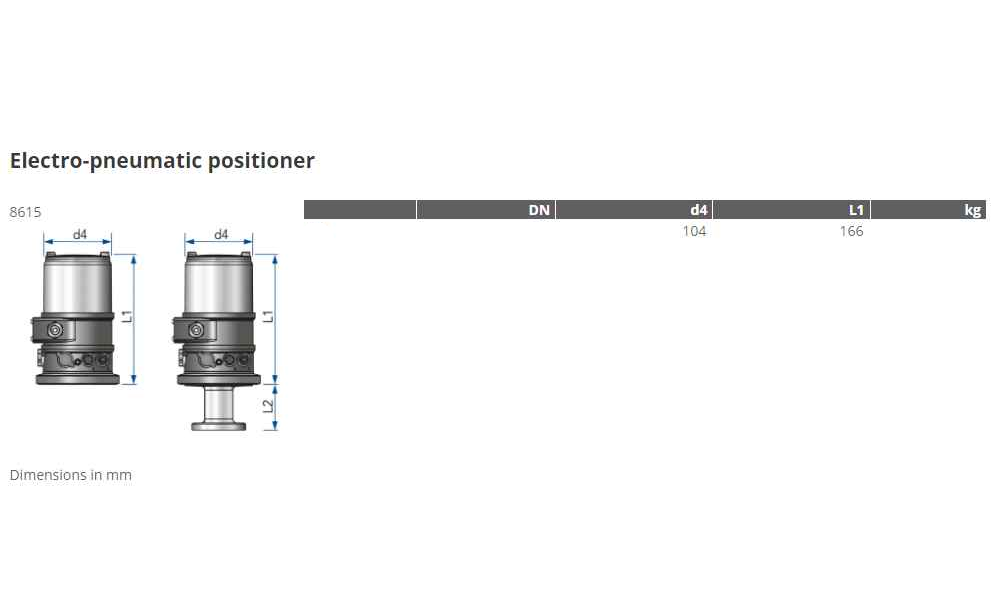

| 8615 | Electropneumatic positioner, rising stem | View Data Sheet |
