official distributor for keofitt & kieselmann
Sanitary Ball & Butterfly Valves
Kieselmann quarter-turn butterfly, ball and leakage valves, are a German made hygienic and cost-effective space-saving solution for:
- Shutting down flow in process lines , on panels and tanks
- Manual or pneumatic with valve position indication
- Leakage butterfly or mixproof butterfly valves are a compact cost-effective solution for separation of incompatible fluids
Looking to Purchase or Need Spare Parts? Request a Quote Today!
request a quote Download PDF
Ball-Butterfly-Mixproof Butterfly Valve Types
| Part Number | Description | Picture | Data Sheet | .STP |
| 2353 | k-flex intermediate flange seal, metric & inch | |||

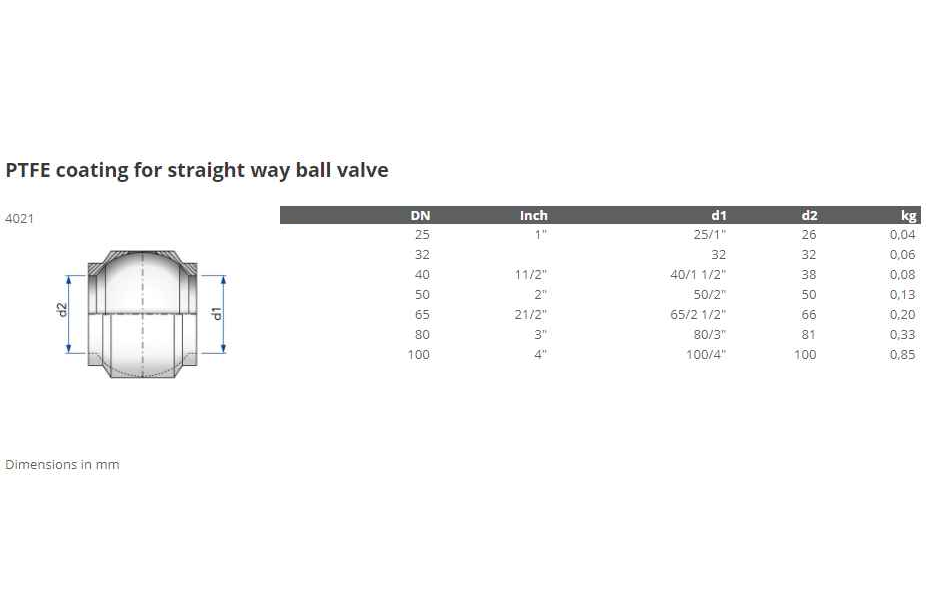

| 4021 | Through way ball valve chamber filling element, PTFE, metric and inch | View Data Sheet | ||

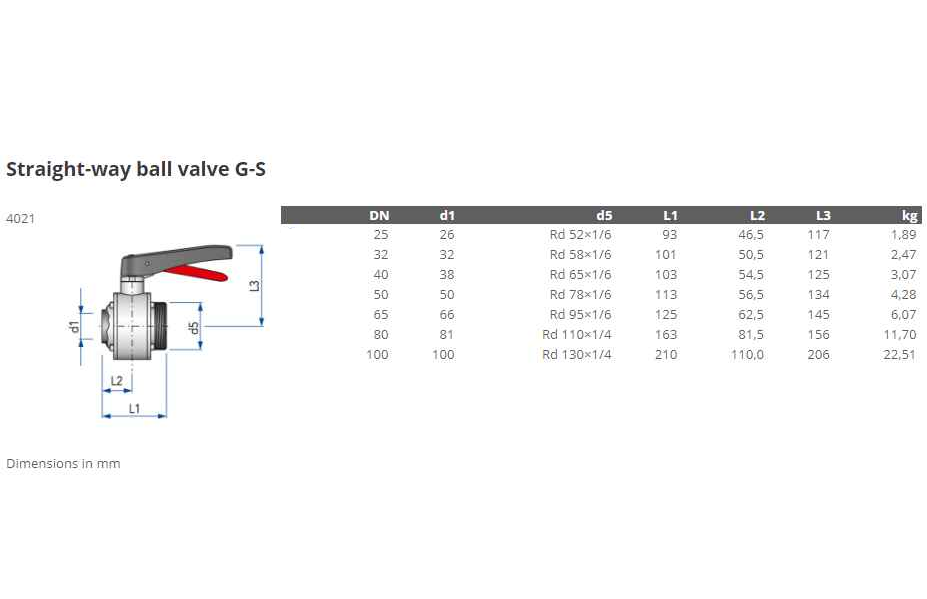

| 4021 | Ball valve, through body, manual - metric & inch, 316 L, weld end x thread (S-G) & thread x thread (G-G) MUST SPECIFY | View Data Sheet | ||

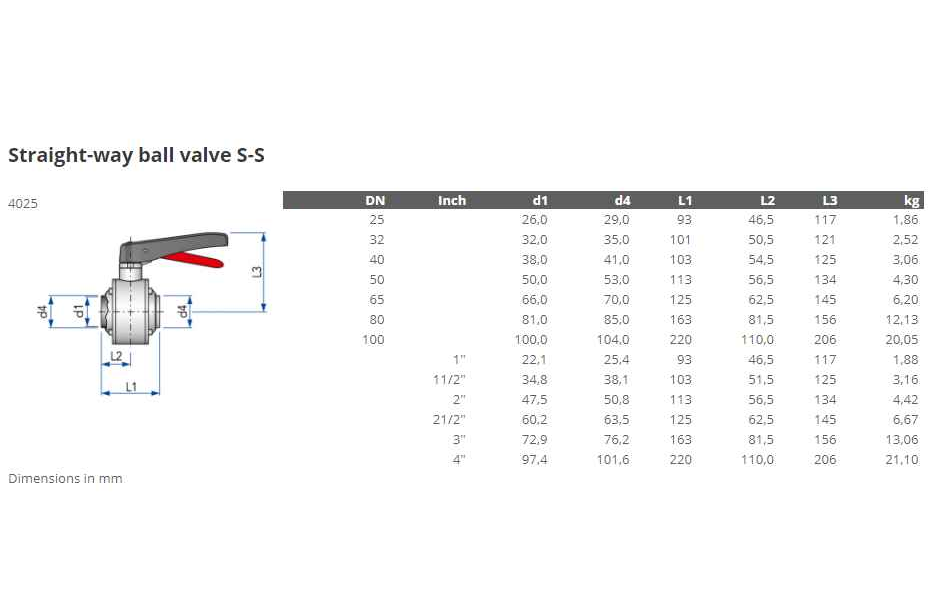

| 4025 | Ball valve, through body, manual - metric & inch, 316 L, weld ends (S-S) | View Data Sheet | ||
| 4062 | ||||

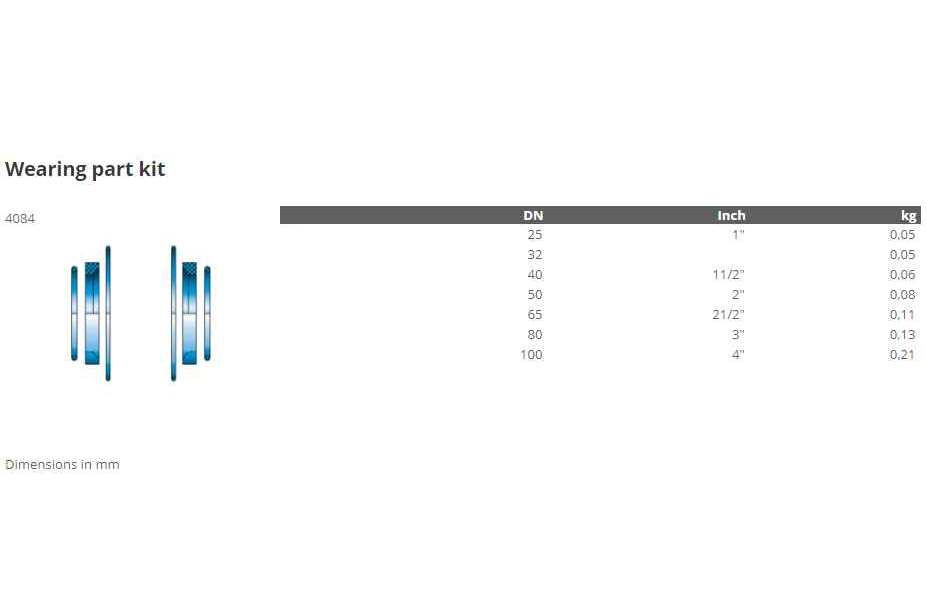

| 4084 | Seal kit for through way ball valves, metric and inch | View Data Sheet | ||

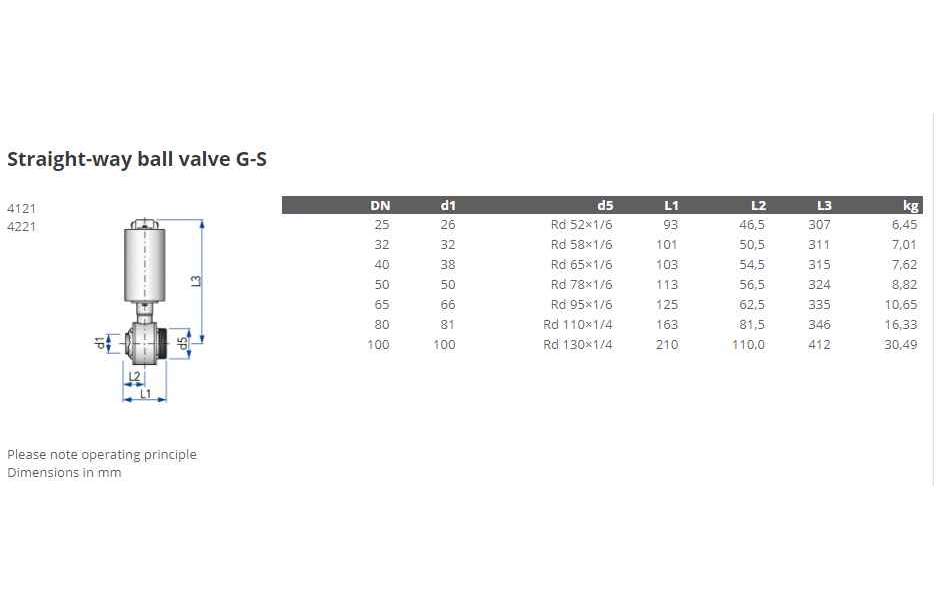

| 4121 | Ball valve, through body, pneumatic air-to-open/air close - metric & inch, 316 L, weld ends x thread (S-G) & thread x thread (G-G) MUST SPECIFY | View Data Sheet | ||

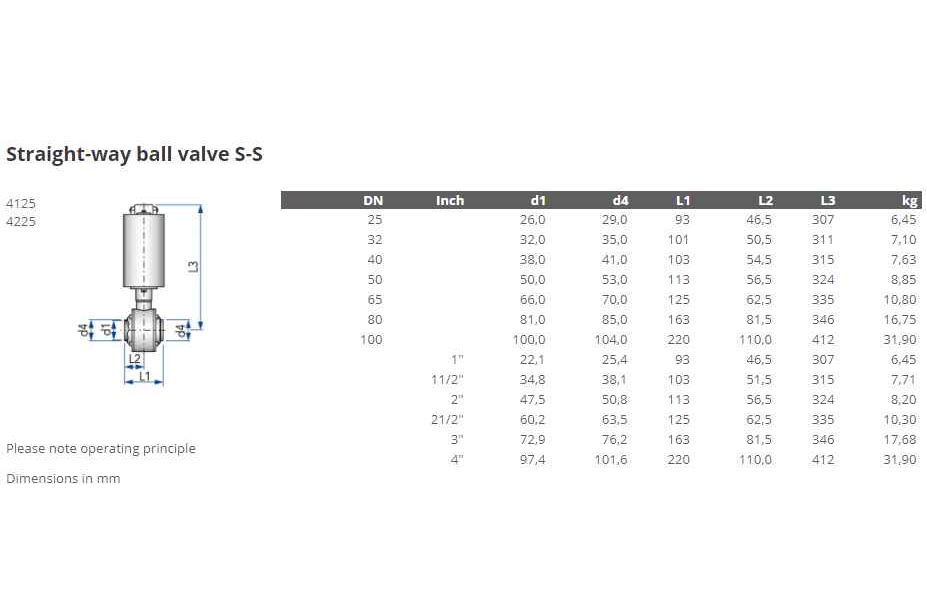

| 4125 | Ball valve, through body, pneumatic air-to-open/air close - metric & inch, 316 L, weld ends (S-S) | View Data Sheet | ||
| 4162 | ||||
| 4221 | Ball valve, through body, pneumatic air-to-open/spring close - metric & inch, 316 L, weld ends x thread (S-G) & thread x thread (G-G) MUST SPECIFY | View Data Sheet | ||
| 4225 | Ball valve, through body, pneumatic air-to-open/spring close - metric & inch, 316 L, weld ends (S-S) | View Data Sheet | ||
| 4262 | ||||

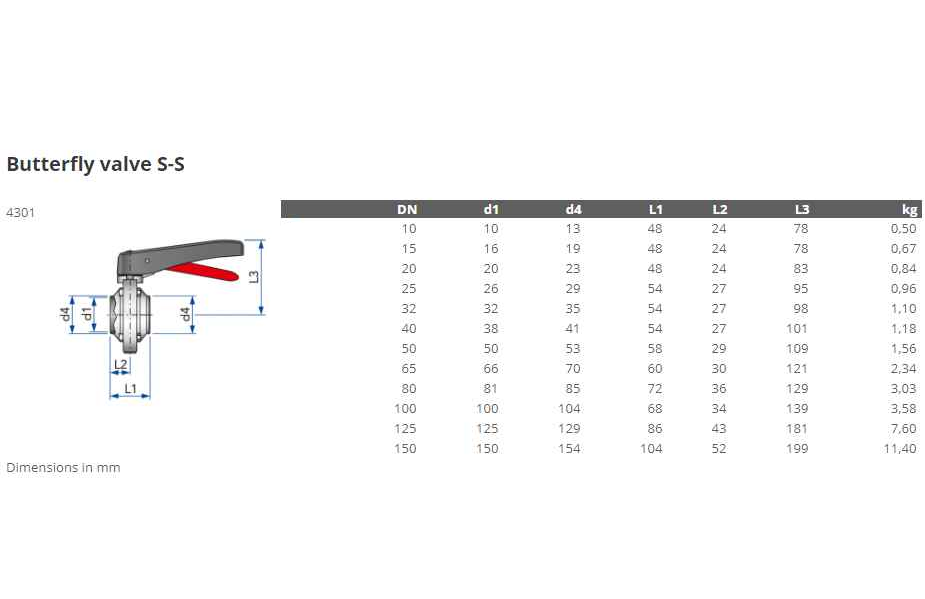

| 4301 | Butterfly valve, manual - metric , 304 L, weld ends (S-S), silicone or EPDM seal MUST SPECIFY | View Data Sheet | ||

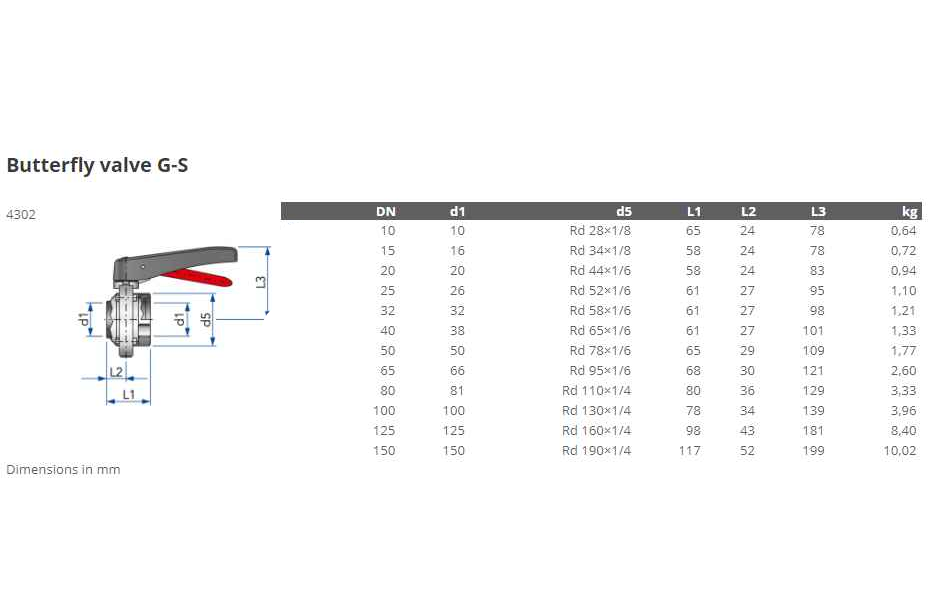

| 4302 | Butterfly valve, manual - metric , 304 L, weld ends x thread (S-G), silicone or EPDM seal MUST SPECIFY | View Data Sheet | ||
| 4303 | Butterfly valve, manual - metric , 304 L, thread x thread (G-G), silicone or EPDM seal MUST SPECIFY | View Data Sheet | ||

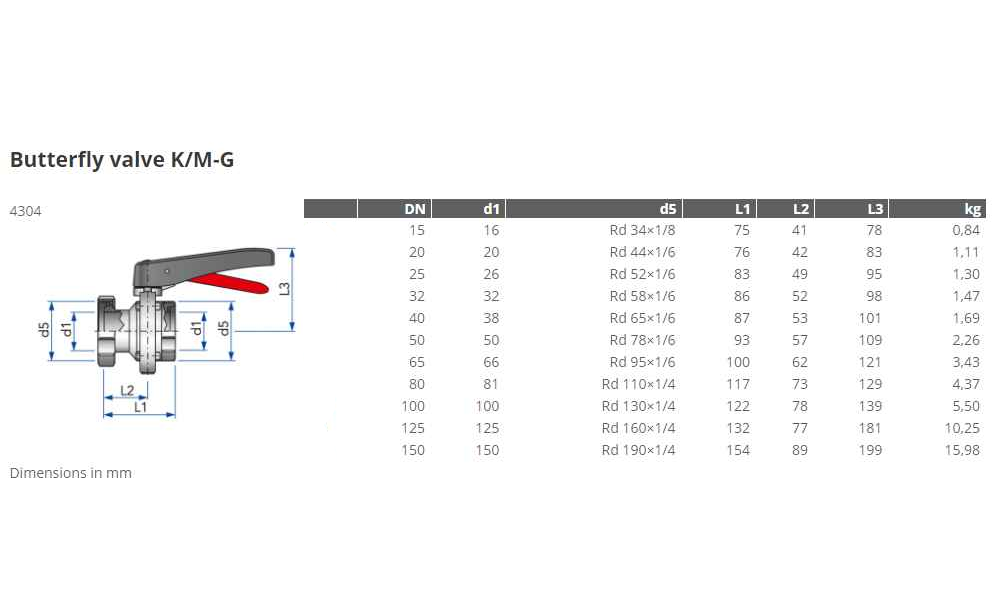

| 4304 | Butterfly valve, manual - metric , 304 L, thread x nut (G-K/M), silicone or EPDM seal MUST SPECIFY | View Data Sheet | ||

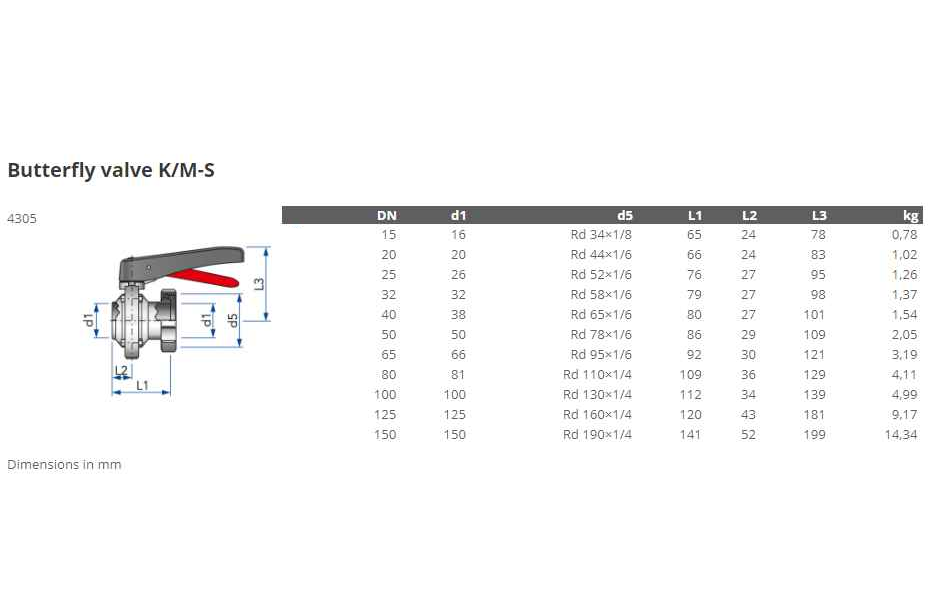

| 4305 | Butterfly valve, manual - metric , 304 L, weld x nut (S-K/M), silicone or EPDM seal MUST SPECIFY | View Data Sheet | ||
| 4307 | Butterfly valve, manual - metric , 304 L, thread x PN 10 flange (G-PN 10), silicone or EPDM seal MUST SPECIFY | |||

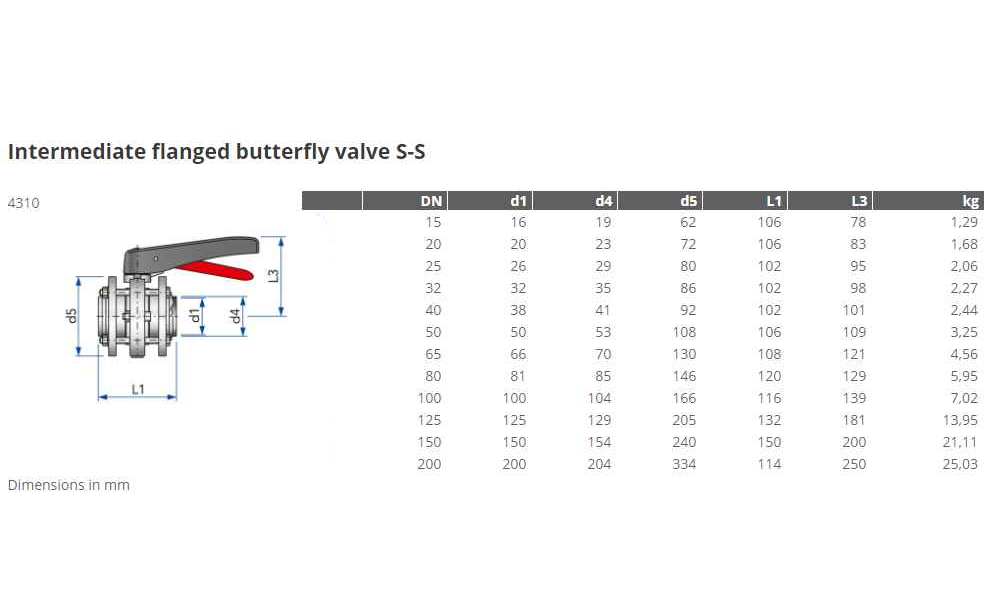

| 4310 | Butterfly valve, manual - metric , 304 L, between flange 2401 weld ends (S-S), silicone or EPDM seal MUST SPECIFY | View Data Sheet | ||
| 4346 | Butterfly valve, manual - metric , 304L L, tri-clamp x tri-clamp DIN 32676 (Cl-Cl), silicone or EPDM seal MUST SPECIFY | View Data Sheet | ||

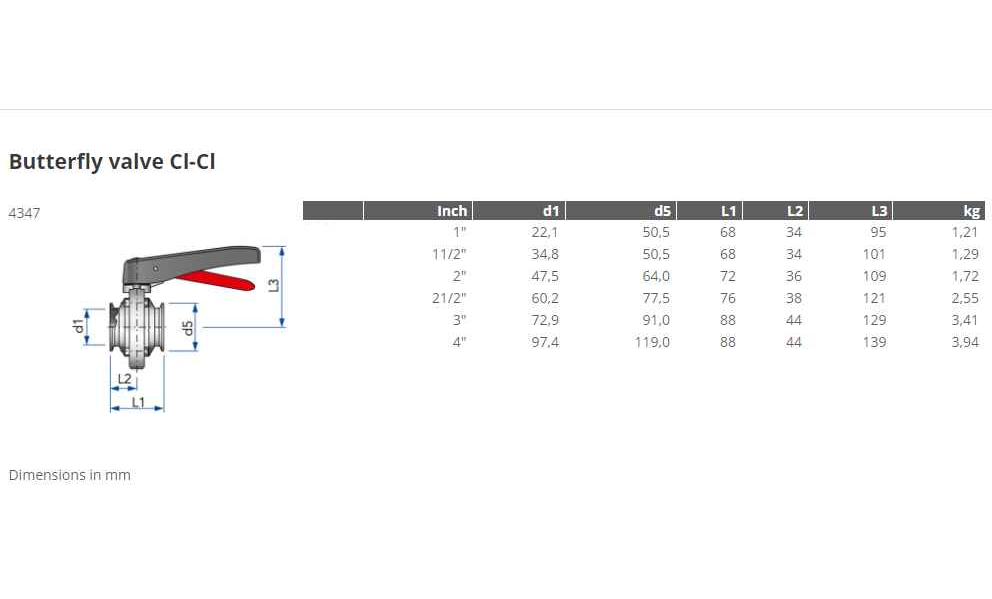

| 4347 | Butterfly valve, manual - inch , 316 L, tri-clamp x tri-clamp DIN 32676 (Cl-Cl), silicone or EPDM seal MUST SPECIFY | View Data Sheet | ||

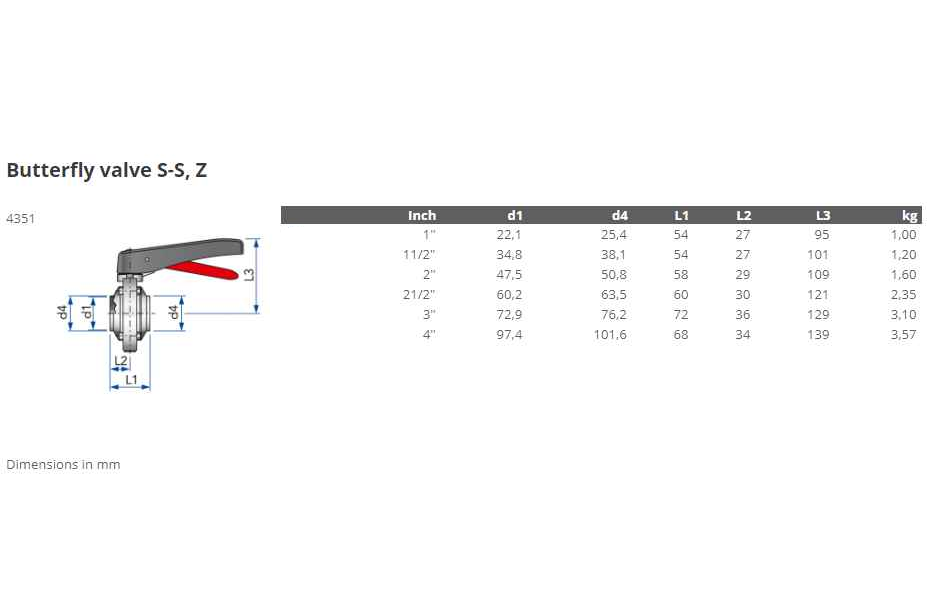

| 4351 | Butterfly valve, manual - inch , 316 L, weld ends (S-S), silicone or EPDM seal MUST SPECIFY | View Data Sheet | ||

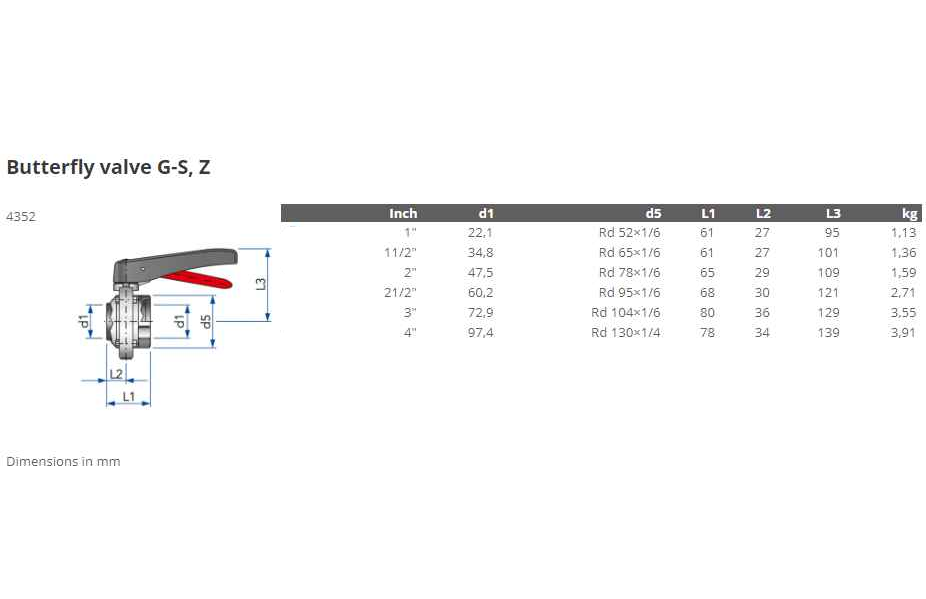

| 4352 | Butterfly valve, manual - inch , 316 L, weld ends x thread (S-G), silicone or EPDM seal MUST SPECIFY | View Data Sheet | ||

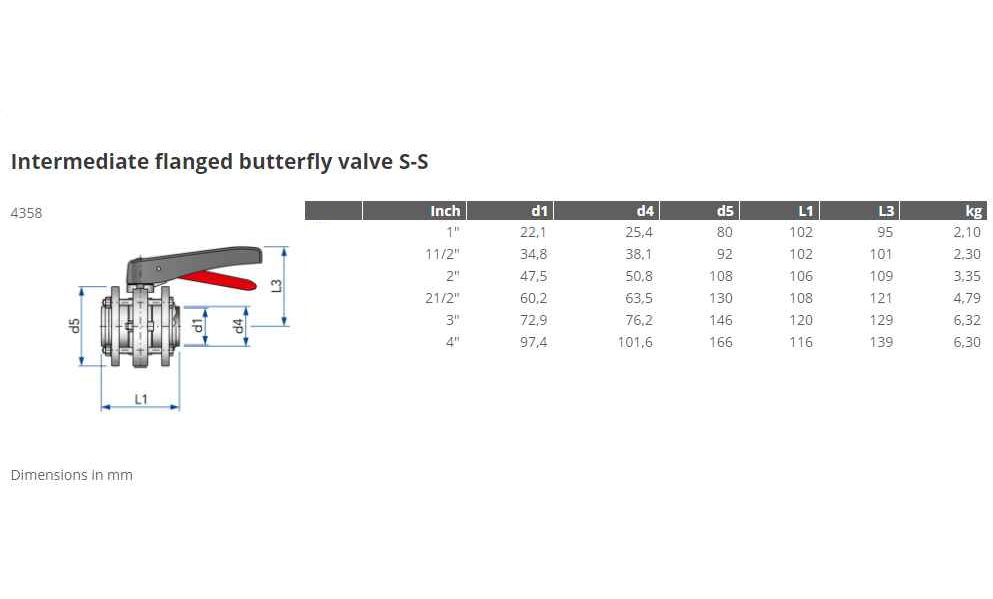

| 4358 | Butterfly valve, manual - inch , 316 L, between flange 2401 weld ends (S-S), silicone or EPDM seal MUST SPECIFY | View Data Sheet | ||

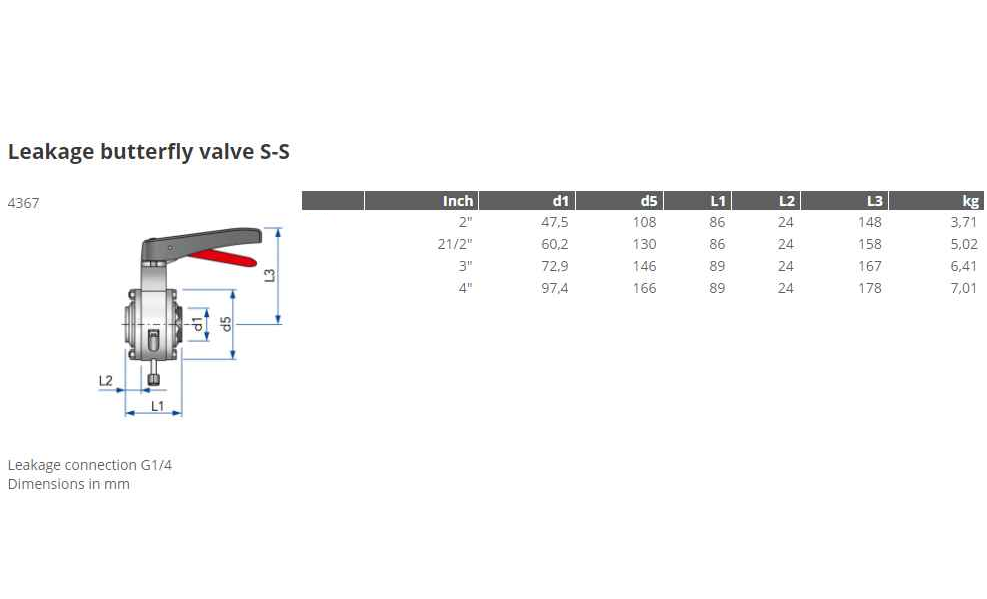

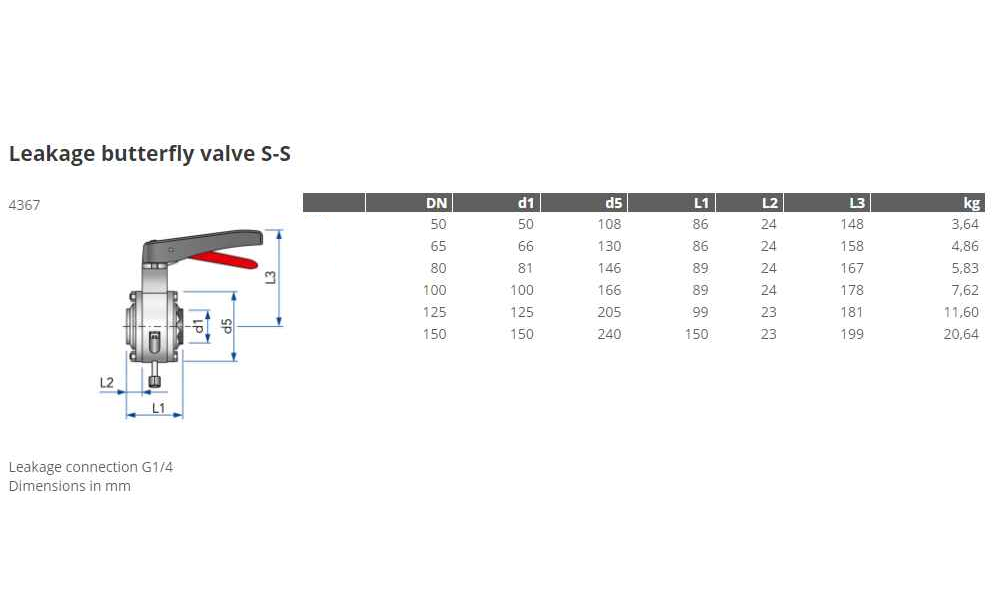

| 4367-IN | Leakage butterfly valve, manual, metric - double seat, metric, 316L, between flange 2041, weld x weld (S-S), EPDM, HNBR - Must Specify | View Data Sheet | ||

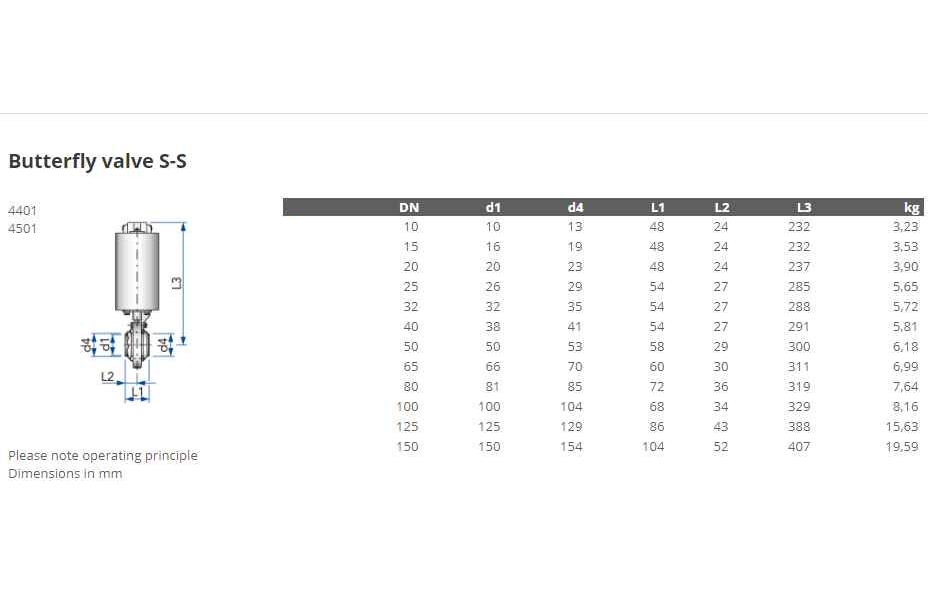

| 4401 | Butterfly valve, pneumatic air-to-open/air close - metric , 304 L, weld ends (S-S), silicone or EPDM seal, MUST SPECIFY | View Data Sheet | ||

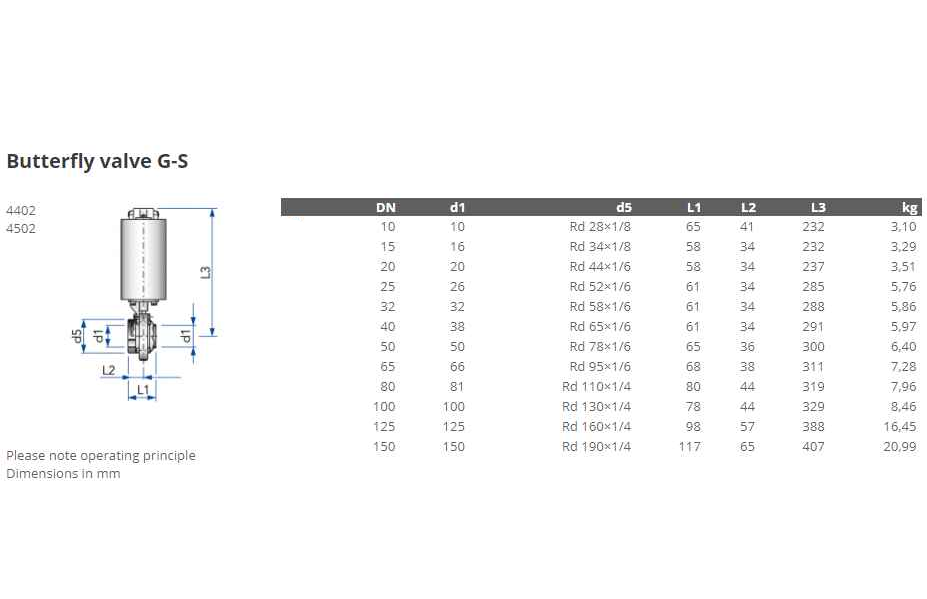

| 4402 | Butterfly valve, pneumatic air-to-open/air close - metric , 304 L, weld end x thread (S-G), silicone or EPDM seal, MUST SPECIFY | View Data Sheet | ||

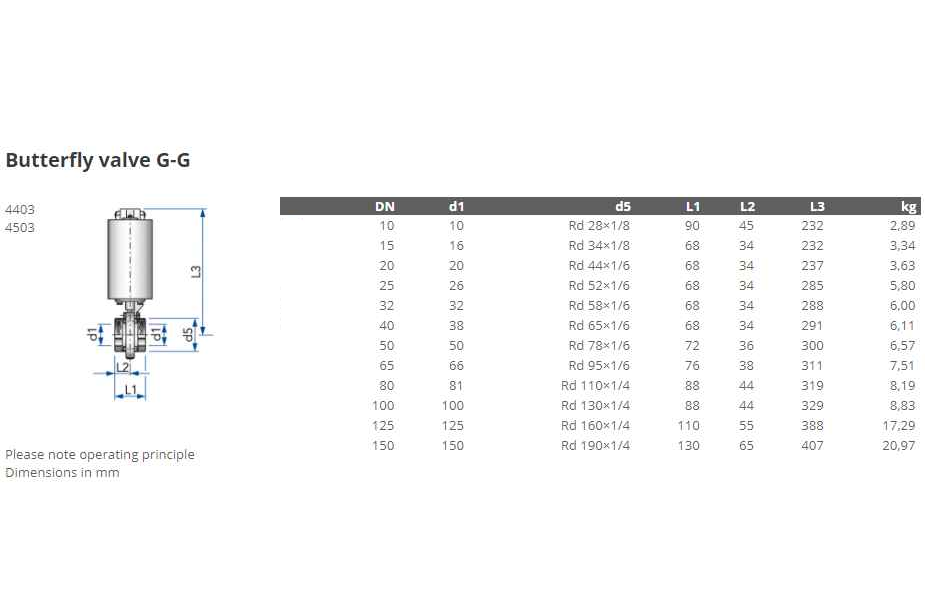

| 4403 | Butterfly valve, pneumatic air-to-open/air close - metric , 304 L, thread x thread (G-G), silicone or EPDM seal, MUST SPECIFY | View Data Sheet | ||

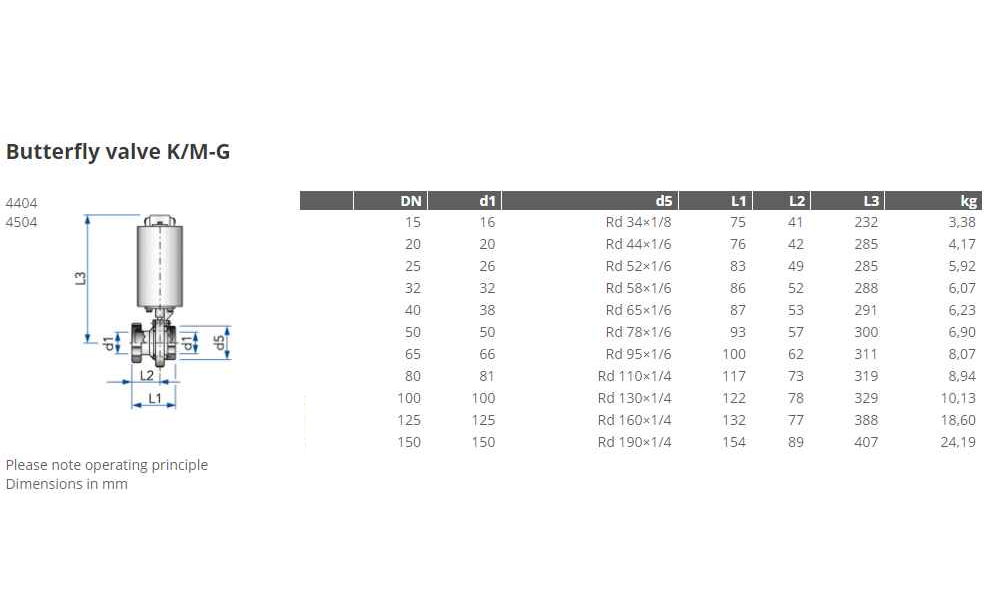

| 4404 | Butterfly valve, pneumatic air-to-open/air-to-close - metric , 304 L, nut x thread (K/M-G), silicone or EPDM seal, MUST SPECIFY | View Data Sheet | ||

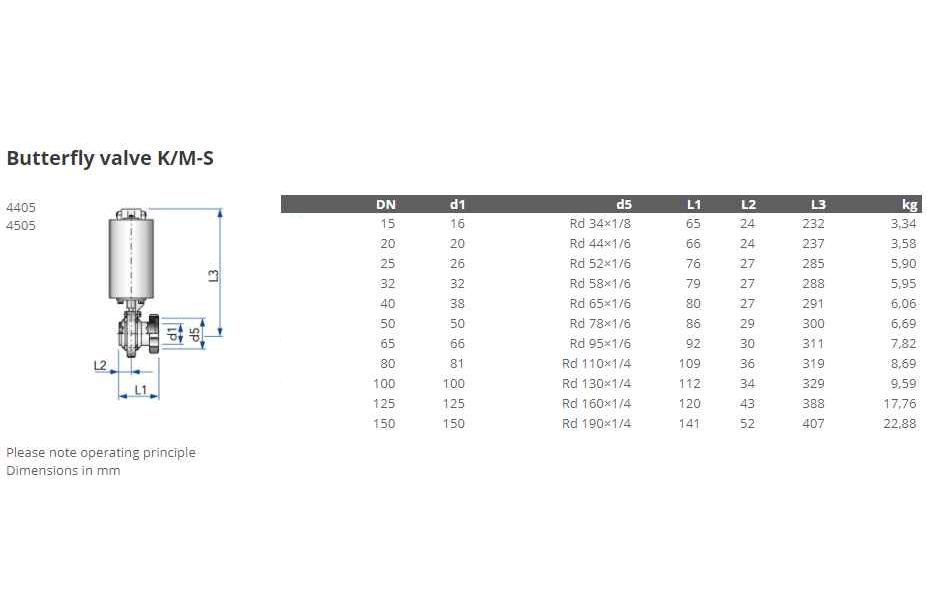

| 4405 | Butterfly valve, pneumatic air-to-open/air close - metric , 304 L, weld x nut (S-K/M), silicone or EPDM seal, MUST SPECIFY | View Data Sheet | ||
| 4407 | Butterfly valve, pneumatic air-to-open/air-to-close - metric , 304 L, PN 10 flandge x thread (PN10-G), silicone or EPDM seal, MUST SPECIFY | |||

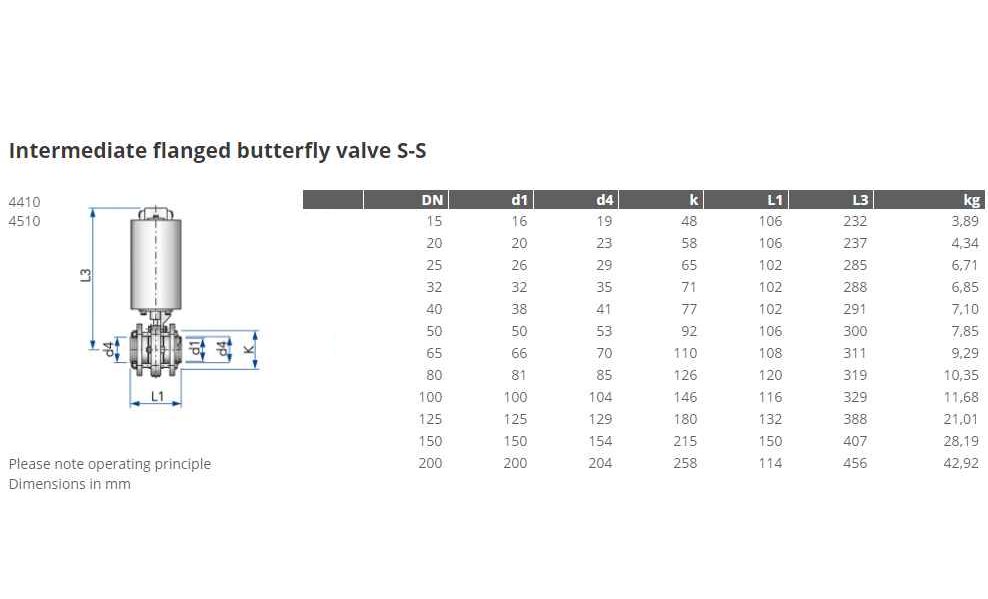

| 4410 | Butterfly valve, pneumatic air-to-open/air-to-close - metric , 304 L, between flange 2401 weld ends (S-S), silicone or EPDM seal, MUST SPECIFY | View Data Sheet | ||

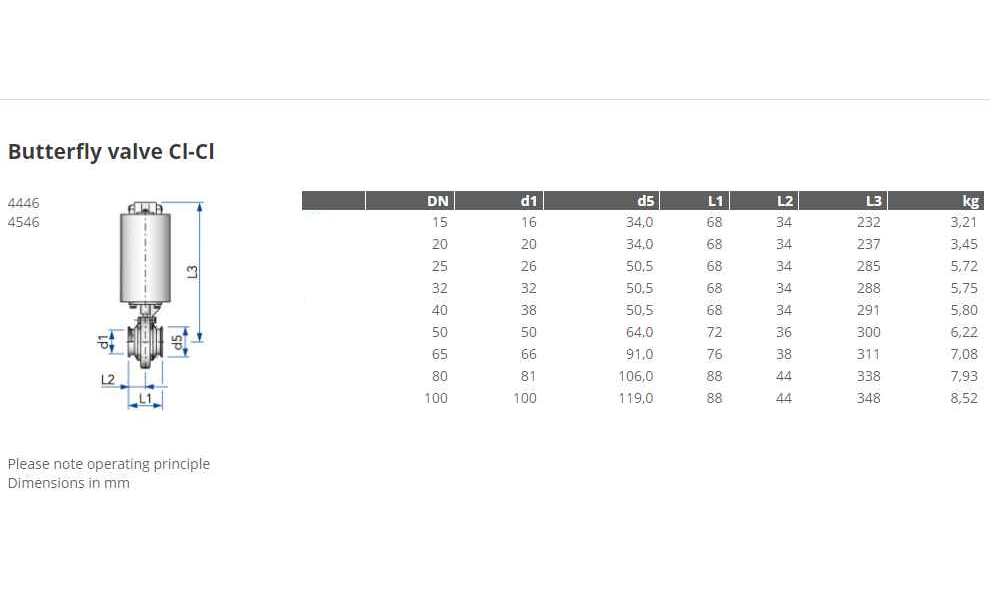

| 4446 | Butterfly valve, pneumatic air-to-open/air-to-close - metric , 304L, tri-clamp x tri-clamp DIN32676 ends (Cl-Cl), silicone or EPDM seal, MUST SPECIFY | View Data Sheet | ||

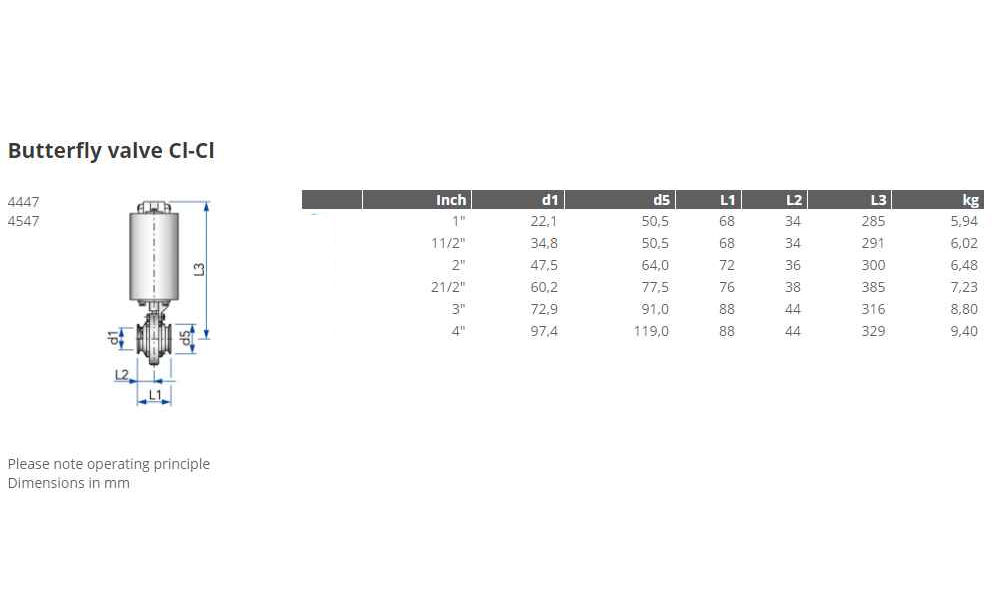

| 4447 | Butterfly valve, pneumatic air-to-open/air-to-close - inch , 316 L, tri-clamp x tri-clamp DIN32676 ends (Cl-Cl), silicone or EPDM seal, MUST SPECIFY | View Data Sheet | ||

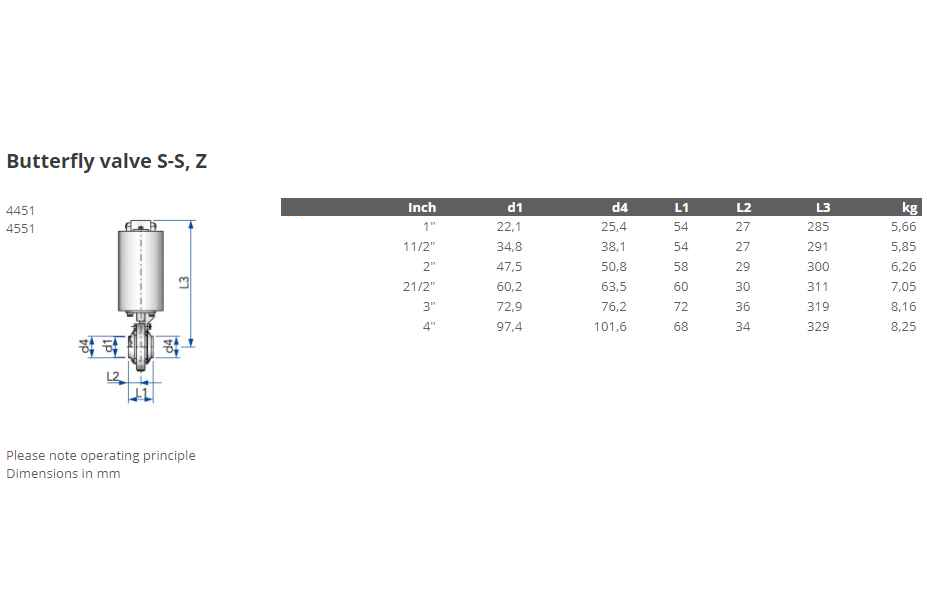

| 4451 | Butterfly valve, pneumatic air-to-open/air close - inch , 316 L, weld ends (S-S), silicone or EPDM seal, MUST SPECIFY | View Data Sheet | ||

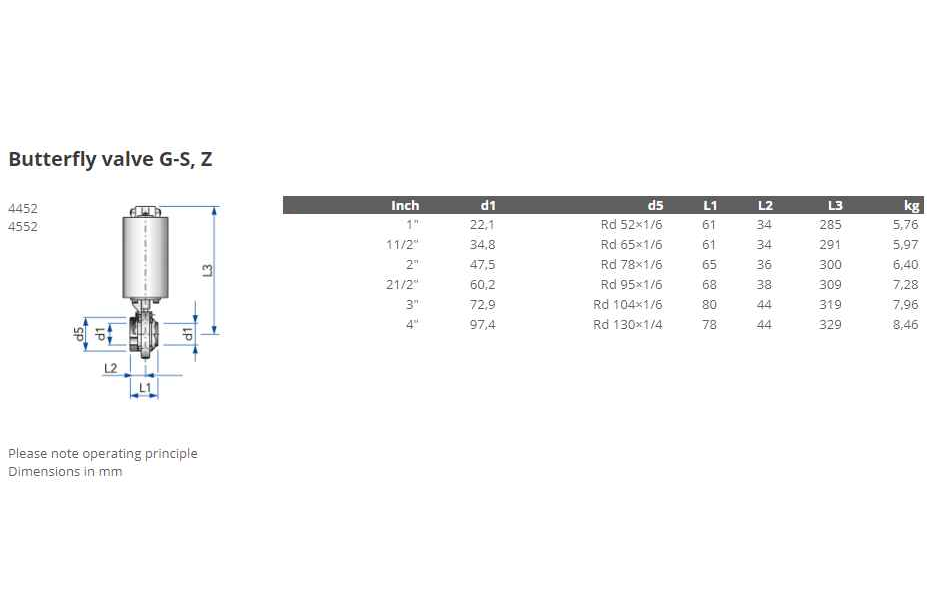

| 4452 | Butterfly valve, pneumatic air-to-open/air close - inch , 316 L, weld end x thread (S-G), silicone or EPDM seal, MUST SPECIFY | View Data Sheet | ||

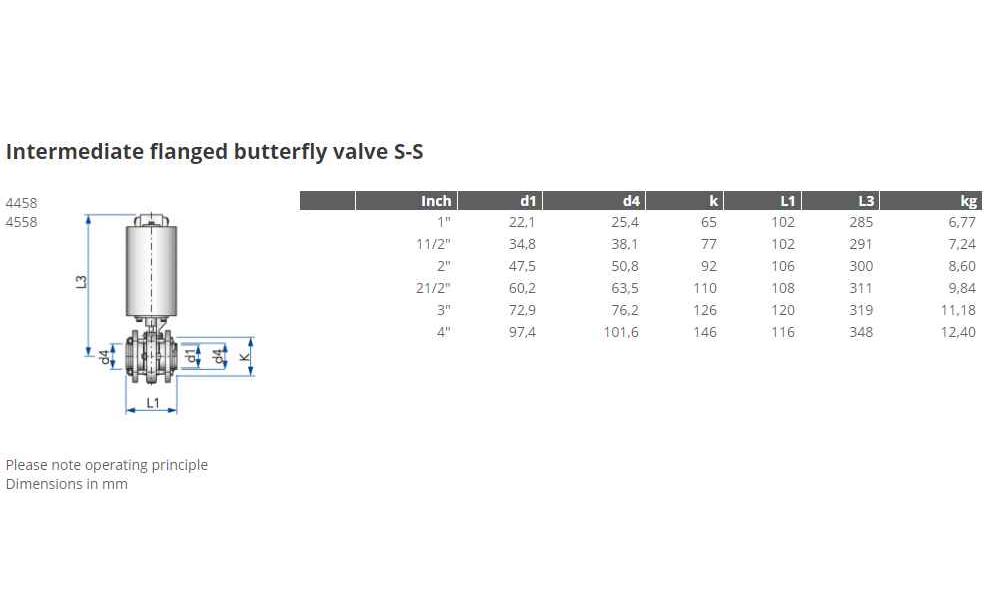

| 4458 | Butterfly valve, pneumatic air-to-open/air-to-close - inch , 316 L, between flange 2401 weld ends (S-S), silicone or EPDM seal, MUST SPECIFY | View Data Sheet | ||
| 4501 | Butterfly valve, pneumatic air-to-open/spring close - metric , 304 L, weld ends (S-S), silicone or EPDM seal, MUST SPECIFY | View Data Sheet | ||
| 4502 | Butterfly valve, pneumatic air-to-open/spring close - metric , 304 L, weld end x thread (S-G), silicone or EPDM seal, MUST SPECIFY | View Data Sheet | ||
| 4503 | Butterfly valve, pneumatic air-to-open/spring close - metric , 304 L, thread x thread (G-G), silicone or EPDM seal, MUST SPECIFY | View Data Sheet | ||
| 4504 | Butterfly valve, pneumatic air-to-open/spring close - metric , 304 L, nut x thread (K/M-G), silicone or EPDM seal, MUST SPECIFY | View Data Sheet | ||
| 4505 | Butterfly valve, pneumatic air-to-open/spring close - metric , 304 L, weld x nut (S-K/M), silicone or EPDM seal, MUST SPECIFY | View Data Sheet | ||
| 4507 | Butterfly valve, pneumatic air-to-open/spring close - metric , 304 L, PN10 flange x thread (PN10-G), silicone or EPDM seal, MUST SPECIFY | |||
| 4510 | Butterfly valve, pneumatic air-to-open/air-spring close - metric , 304 L, between flange 2401 weld ends (S-S), silicone or EPDM seal, MUST SPECIFY | View Data Sheet | ||
| 4546 | Butterfly valve, pneumatic air-to-open/spring close - metric , 304 L, tri-clamp x tri-clamp DIN32676 ends (Cl-Cl), silicone or EPDM seal, MUST SPECIFY | View Data Sheet | ||
| 4551 | Butterfly valve, pneumatic air-to-open/spring close - inch , 316 L, weld ends (S-S), silicone or EPDM seal, MUST SPECIFY | View Data Sheet | ||
| 4552 | Butterfly valve, pneumatic air-to-open/spring close - inch , 316 L, weld end x thread (S-G), silicone or EPDM seal, MUST SPECIFY | View Data Sheet | ||
| 4558 | Butterfly valve, pneumatic air-to-open/spring close - inch , 316 L, between flange 2401 weld ends (S-S), silicone or EPDM seal, MUST SPECIFY | View Data Sheet | ||
| 4547 | Butterfly valve, pneumatic air-to-open/spring close - inch , 316 L, tri-clamp x tri-clamp DIN32676 ends (Cl-Cl), silicone or EPDM seal, MUST SPECIFY | View Data Sheet | ||

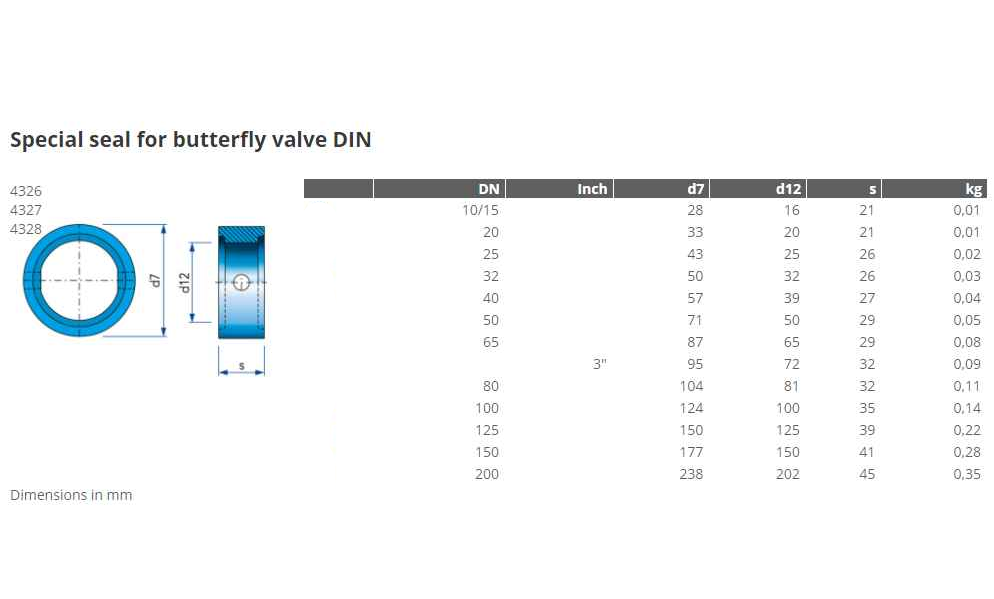

| 4326-(052) | Butterfly valve seal- metric, silicone | View Data Sheet | ||
| 4327-(051) | Butterfly valve seal- metric, Viton/FKM | View Data Sheet | ||
| 4328-(054) | Butterfly valve seal- metric & inch, EPDM - MUST SPECIFY METRIC or INCH | View Data Sheet | ||
| 5631 | Enclosed control top, for rotary valve, pneumatic - must specify solenoid valve and sensor positions required | |||
| 4040 | Enclosed Control top, electronic, for rotary valve - specify requirements | |||
| 8615 | Electropneumatic positioner for rotary valve, specify connection type | View Data Sheet | ||
| 4367-MET | Leakage butterfly valve, manual, metric - double seat, metric, 316L, between flange 2041, weld x weld (S-S), EPDM, HNBR - Must Specify | View Data Sheet | ||

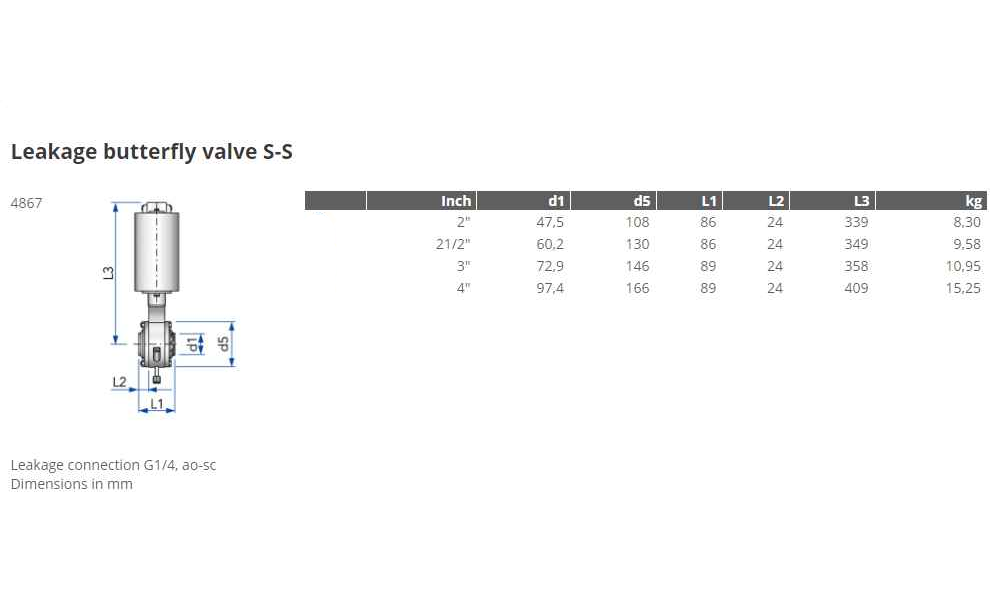

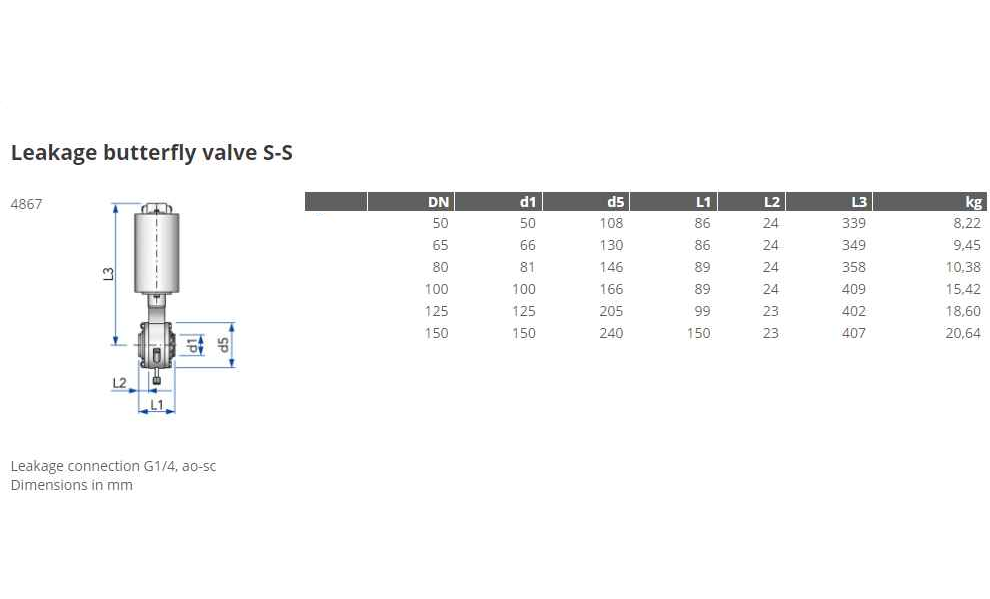

| 4867-MET | Leakage butterfly valve, metric , 316L, - double seat, pneumatic air-to-open/Spring close, between flange 2041, weld x weld (S-S), EPDM, HNBR - Must Specify | View Data Sheet | ||
| 4867-IN | Leakage butterfly valve, metric , 316L, - double seat, pneumatic air-to-open/Spring close, between flange 2041, weld x weld (S-S), EPDM, HNBR - Must Specify | View Data Sheet |
